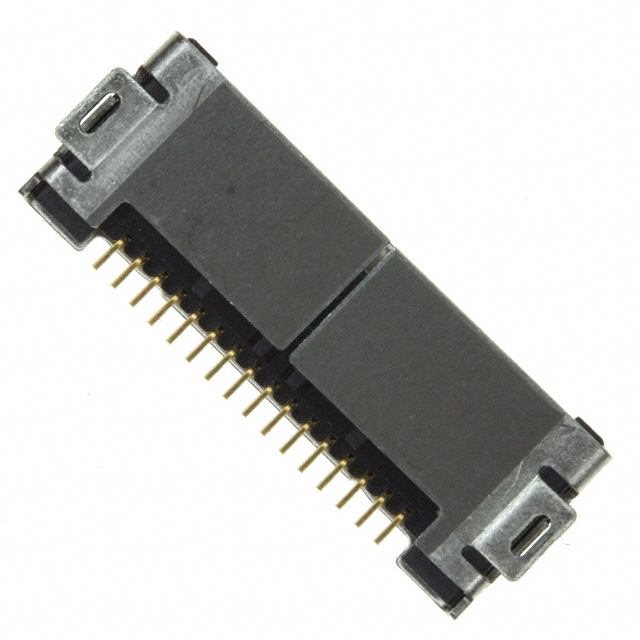

RL01S-R16P-HE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RL01S-R16P-HE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RL01S-R16P-HE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RL01S-R16P-HE |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT 16PS .8MM R/A SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RL01S-R16P-HE | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 16PS .8MM R/A SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4819 pcs | Data sheet | RL01S-R16P-HE |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | RL01/RL01S/RL02S | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Tray |
| Other Names | 670-1108 | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.114" (2.90mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Shielded, Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 16 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold | Current Rating | - |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
