N/MS3101B20-29PW

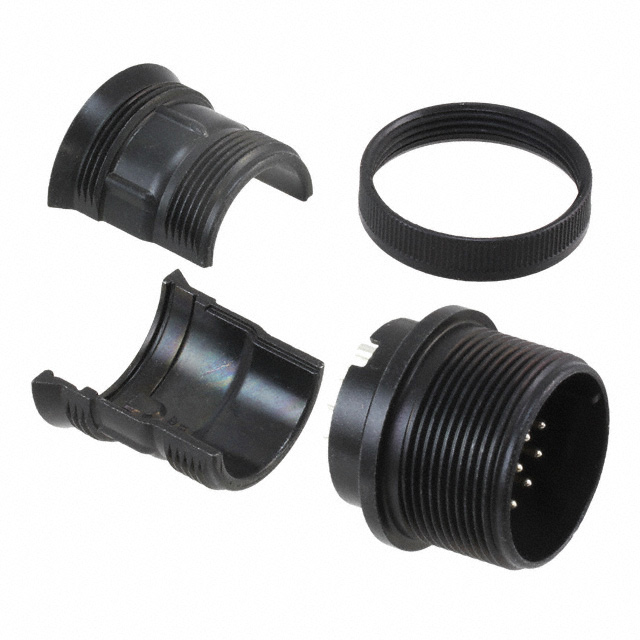

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N/MS3101B20-29PW with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N/MS3101B20-29PW with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | N/MS3101B20-29PW |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 17POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $15.319 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | N/MS3101B20-29PW | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 17POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2343 pcs | Data sheet | Circular ConnectorsN/MS3101Bxx |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 20-29 |
| Shell Material | Aluminum Alloy | Shell Finish | Zinc |
| Series | N/MS | Packaging | Bulk |
| Other Names | 670-2324 NMS3101B2029PW |
Orientation | W |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 17 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | - |
| Features | Backshell | Fastening Type | Threaded |
| Detailed Description | 17 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 13A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | Aluminum Alloy, Zinc | Applications | - |
