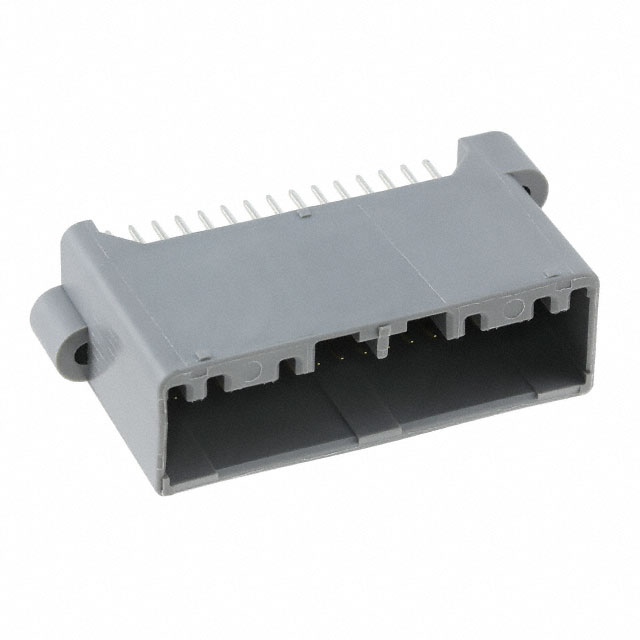

MX34032UF2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MX34032UF2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MX34032UF2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MX34032UF2 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN SOCKET 32POS HOUSING 2.2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.891 | $0.807 | $0.758 | $0.725 | $0.692 | |
| 250 pcs | 616 pcs | 1232 pcs | 3080 pcs | ||
| $0.626 | $0.577 | $0.494 | $0.461 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MX34032UF2 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN SOCKET 32POS HOUSING 2.2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72160 pcs | Data sheet | MX34032UF2 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX34 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.087" (2.20mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 670-2910 CBM-148096 MX34032UF2-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 32 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.925" (23.50mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 32 position 0.087" (2.20mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.303" (7.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
