MX23A26NF2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MX23A26NF2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MX23A26NF2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MX23A26NF2 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |

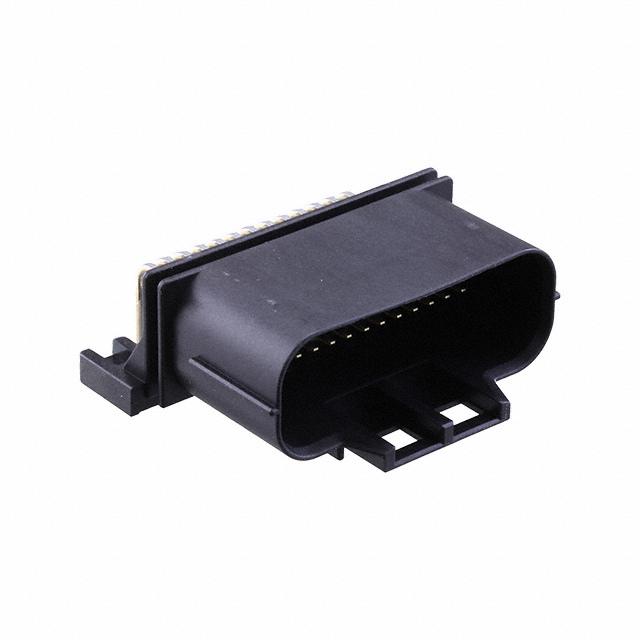

| Description | CONN HEADER 26POS R/A MX23A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.055 | $2.922 | $2.457 | $2.059 | $1.82 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MX23A26NF2 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HEADER 26POS R/A MX23A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16910 pcs | Data sheet | MX23A26NF2 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX23A |
| Row Spacing - Mating | 0.173" (4.40mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 670-3018 MX23A26NF2-ND |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.720" (18.30mm) | Insulation Color | Black |
| Ingress Protection | Waterproof | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.098" (2.50mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
