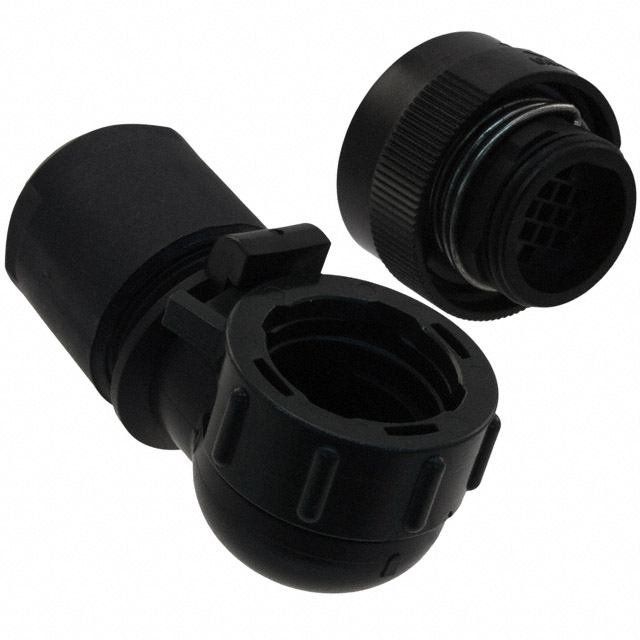

JN2FW15SL1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN2FW15SL1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN2FW15SL1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN2FW15SL1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLG HSG FMAL 15PS INLINE RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $11.02 | $9.946 | $9.53 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.934 | $8.636 | $8.16 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN2FW15SL1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLG HSG FMAL 15PS INLINE RA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3643 pcs | Data sheet | Circular ConnectorsJN2FW15SLx Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | W | Shell Material | Zinc Alloy |
| Shell Finish | Zinc | Series | JN2W |
| Packaging | Bulk | Other Names | 670-2425 JN2FW15SL1-ND |
| Orientation | N (Normal) | Operating Temperature | -20°C ~ 100°C |
| Number of Positions | 15 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | Backshell, Coupling Nut, Rotatable | Fastening Type | Push-Twist |
| Detailed Description | 15 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut, Rotatable | Coupling Nut Material, Plating | Zinc Alloy, Zinc |
| Coupling Nut Diameter | 1.031" (26.19mm) | Contact Type | Crimp |
| Contact Size | 22 | Contact Shape | Circular |
| Connector Type | Plug Housing |
