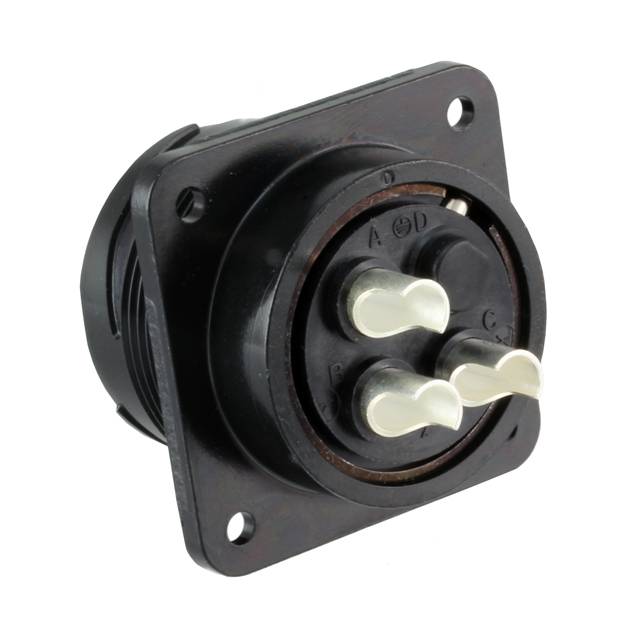

JL10-2E22-22PE-F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL10-2E22-22PE-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL10-2E22-22PE-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL10-2E22-22PE-F |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $15.861 | |||||
- Product parameter
Product parameter
| Part Number | JL10-2E22-22PE-F | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1916 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 22-22 |
| Shell Material | Aluminum Alloy | Shell Finish | Zinc |
| Series | JL10 | Packaging | Bulk |
| Orientation | N (Normal) | Operating Temperature | - |
| Number of Positions | 4 (3 + PE) | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Ground |
| Fastening Type | Bayonet Lock, Threaded | Detailed Description | 4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Current Rating | - | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Male Pins | Color | Black |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Communication Systems, Industrial, Test Equipment & Measurement |
