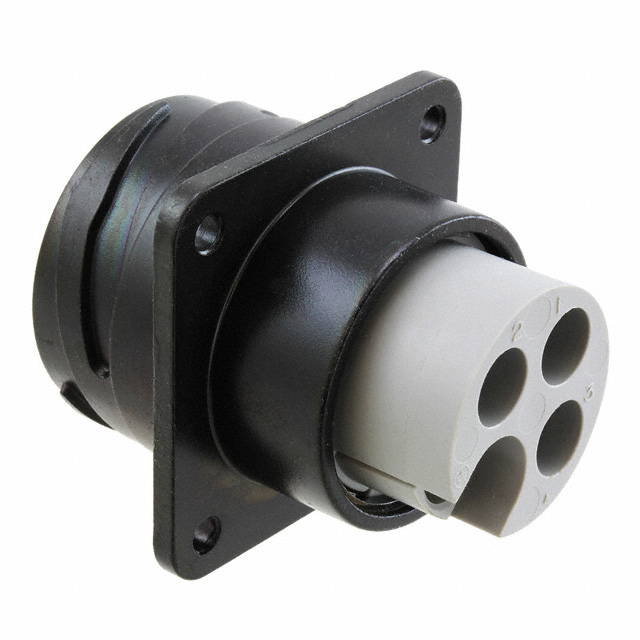

JL05-2A22-22PC-F0-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL05-2A22-22PC-F0-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL05-2A22-22PC-F0-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL05-2A22-22PC-F0-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT HSNG MALE 4POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $15.191 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL05-2A22-22PC-F0-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 4POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2188 pcs | Data sheet | Circular ConnectorsJL05(6,2)A Waterproof Series DatasheetJL05-2Ayy-yyy-F0-R Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 22-22 | Shell Material | Aluminum Alloy |
| Shell Finish | Zinc | Series | JL05 |
| Packaging | Tray | Other Names | 670-2412 JL052A2222PCF0R |
| Orientation | N (Normal) | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 4 (3 + PE) | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Synthetic Resin |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Black | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 4 (3 + PE) Position Circular Connector Receptacle Housing Panel Mount |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | Crimp | Contact Size | 8 |
| Contact Shape | Circular | Connector Type | Receptacle Housing |
