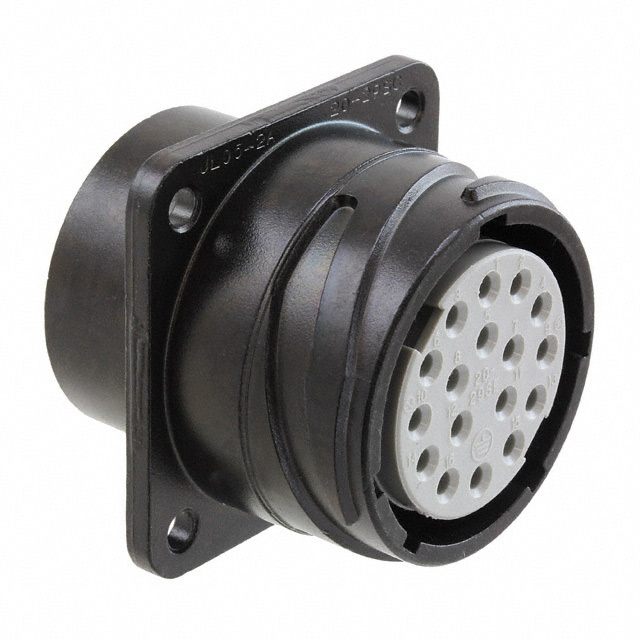

JL05-2A20-29SC-F0-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL05-2A20-29SC-F0-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL05-2A20-29SC-F0-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL05-2A20-29SC-F0-R |
|---|---|
| Manufacturer | JAE Electronics |
| Description | CONN RCPT 17POS CRIMP W/O SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 40 pcs | ||||
|---|---|---|---|---|---|
| $5.06 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL05-2A20-29SC-F0-R | Manufacturer | JAE Electronics |
|---|---|---|---|
| Description | CONN RCPT 17POS CRIMP W/O SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6045 pcs | Data sheet | Circular ConnectorsJL05(6,2)A Waterproof Series DatasheetJL05-2Ayy-yyy-F0-R Drawing |
| Category | Connectors, Interconnects | Wire Gauge or Range - AWG | 16 |
| Usage | Unshielded | Type Attributes | IP67 - Dust Tight, Waterproof |
| Type | For Female Sockets | Stacking Direction | Crimp |
| Shield Termination | Circular | Shell Material, Finish | - |
| Shell Finish | Aluminum Alloy | Series | JL05 |
| RoHS Status | Bulk | Plug/Mating Plug Diameter | Black |
| Other Names | 670-2017 JL05-2A20-29SC-FO-R JL052A2029SCF0R |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 17 (16 + PE) | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Manufacturer Part Number | JL05-2A20-29SC-F0-R | Large Diameter Supplied | 20-29 |
| Insert Material | - | Includes | - |
| Features | - | Expanded Description | 17 (16 + PE) Position Circular Connector Receptacle Housing Panel Mount |
| Description | CONN RCPT 17POS CRIMP W/O SOCKET | Current - Max/Contact | Bayonet Lock |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | Zinc |
| Contact Shape | Synthetic Resin | Contact Material | N (Normal) |
| Connector Type | Receptacle Housing | Body Material | Flange |
