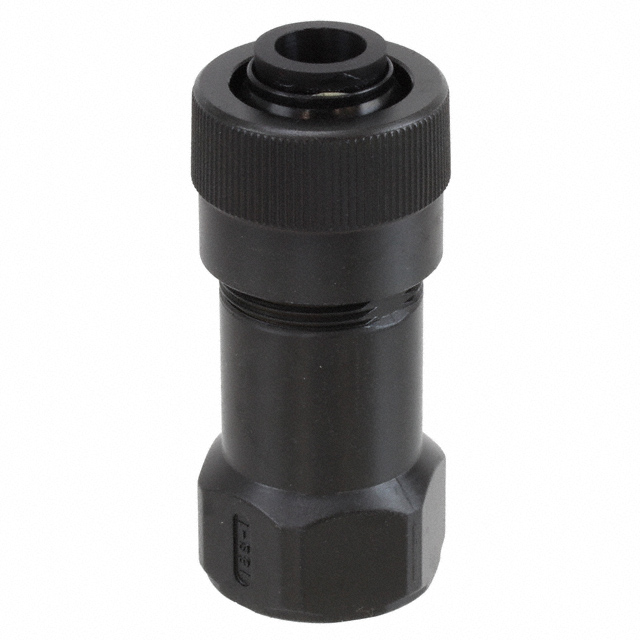

JL05-18EB3B-(11)-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL05-18EB3B-(11)-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL05-18EB3B-(11)-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL05-18EB3B-(11)-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN BACKSHELL W/CLAMP SZ18 1-20 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $6.944 | $6.269 | $6.006 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL05-18EB3B-(11)-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN BACKSHELL W/CLAMP SZ18 1-20 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5392 pcs | Data sheet | JL05(6,2)A Waterproof Series DatasheetJL05-xxEB3B-(xx)-R Drawing |
| Category | Connectors, Interconnects | Type | Backshell, Cable Clamp |
| Thread Size | 1-20 UNEF | Shielding | - |
| Shell Size - Insert | 18 | Series | JL05 |
| Plating | Zinc | Other Names | 670-2074 JL0518EB3B11R |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Material | Aluminum Alloy | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | Waterproof | Includes | 8 pcs - 1 Backshell, 2 Bushings, 1 Compression Nut, 1 O-Ring, 2 Screws, 1 Sleeve |
| For Use With/Related Products | JL05 Series Connectors | Features | Bushing, Sleeve |
| Diameter - Outside | 1.260" (32.00mm) | Detailed Description | Black Connector Backshell, Cable Clamp 1-20 UNEF 18 |
| Color | Black | Cable Opening | 0.433" (11.00mm) |
| Cable Exit | 180° |
