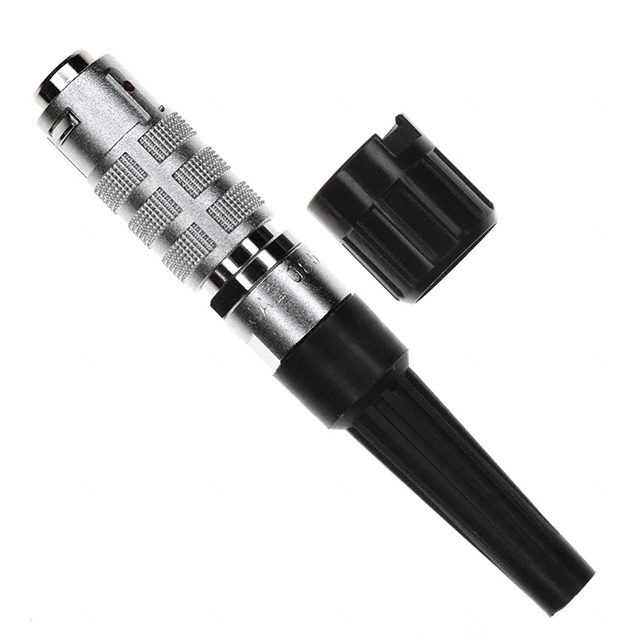

JB5DS06MN11N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB5DS06MN11N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JB5DS06MN11N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JB5DS06MN11N |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLUG MALE 6POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 13 pcs | ||||
|---|---|---|---|---|---|
| $11.732 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JB5DS06MN11N | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG MALE 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2970 pcs | Data sheet | Circular ConnectorsJB5DS06MN11N DrawingJB5 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | S |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | JB5 | Packaging | Tray |
| Other Names | 670-1041 JB5DS06MN11 |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 6 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | Clamp, Strain Relief | Fastening Type | Push-Pull |
| Detailed Description | 6 Position Circular Connector Plug, Male Pins Solder Cup Gold | Current Rating | 2A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Black, Silver | Cable Opening | 0.177" ~ 0.197" (4.50mm ~ 5.00mm) |
| Backshell Material, Plating | - | Applications | Medical, Telecommunications, Test & Measurement |
