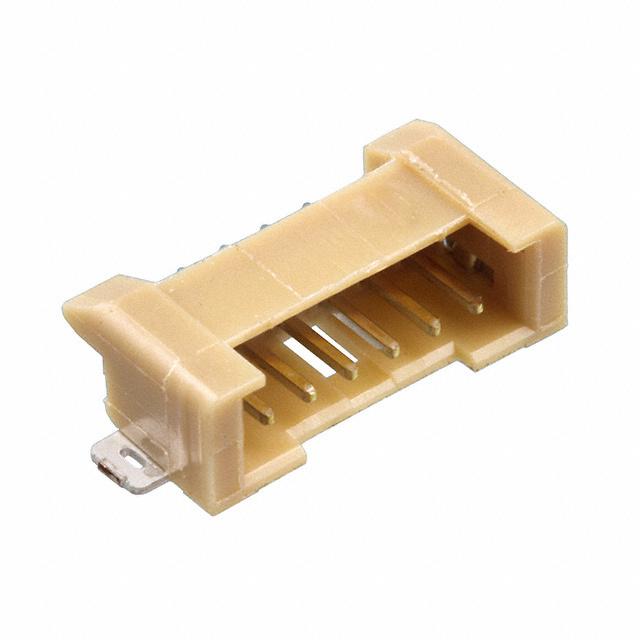

IL-Z-6PL-SMTYE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IL-Z-6PL-SMTYE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IL-Z-6PL-SMTYE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IL-Z-6PL-SMTYE |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN HDR 1.25MM 6POS SMD R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IL-Z-6PL-SMTYE | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HDR 1.25MM 6POS SMD R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5714 pcs | Data sheet | Board-to-Cable ConnectorsIL-Z-xPL-SMTYE Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | IL-Z |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 670-1756 IL-Z-6PL-SMTYE-ND ILZ6PLSMTYE |
Operating Temperature | -40°C ~ 70°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.136" (3.46mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 6 position 0.049" (1.25mm) | Current Rating | 1A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.108" (2.75mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
