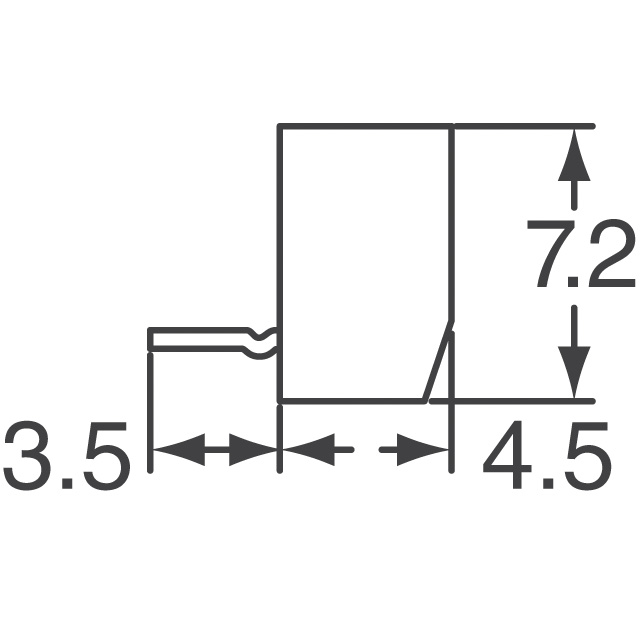

IL-S-3P-S2L2-EF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IL-S-3P-S2L2-EF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IL-S-3P-S2L2-EF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IL-S-3P-S2L2-EF |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN HEADER 3POS R/A 2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IL-S-3P-S2L2-EF | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HEADER 3POS R/A 2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5469 pcs | Data sheet | IL-S-xP-S2L2-EF DrawingIL-S Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 300VAC, 400VDC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | IL-S |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 670-2228 ILS3PS2L2EF |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.177" (4.50mm) |
| Insulation Color | Brown | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm) | Current Rating | 3A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | 0.126" (3.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
