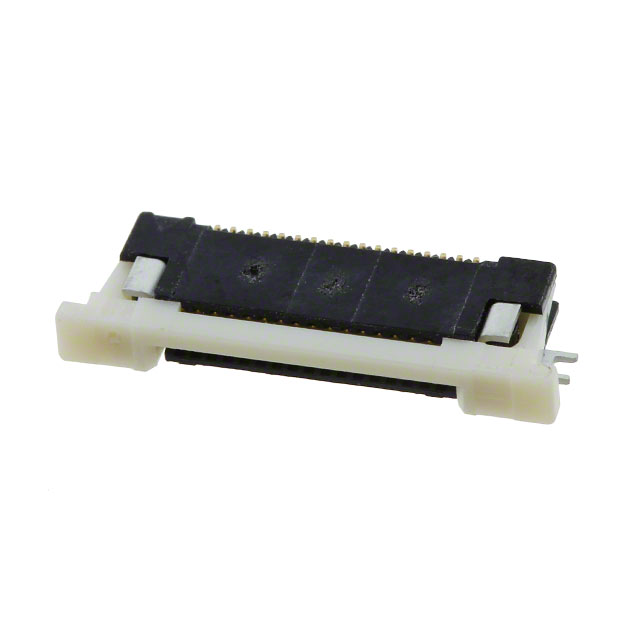

IL-FPR-17S-HF-N1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IL-FPR-17S-HF-N1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IL-FPR-17S-HF-N1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IL-FPR-17S-HF-N1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC BOTTOM 17POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IL-FPR-17S-HF-N1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 17POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4148 pcs | Data sheet | IL-FPR-yyS-HF-N1 DrawingIL-FPR Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | IL-FPR |
| Pitch | 0.020" (0.50mm) | Packaging | Tray |
| Other Names | 670-1923 IL-FPR-17S-HF-N1-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 17 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Housing Color | Black | Height Above Board | 0.075" (1.90mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 17 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled | Actuator Color | White |
