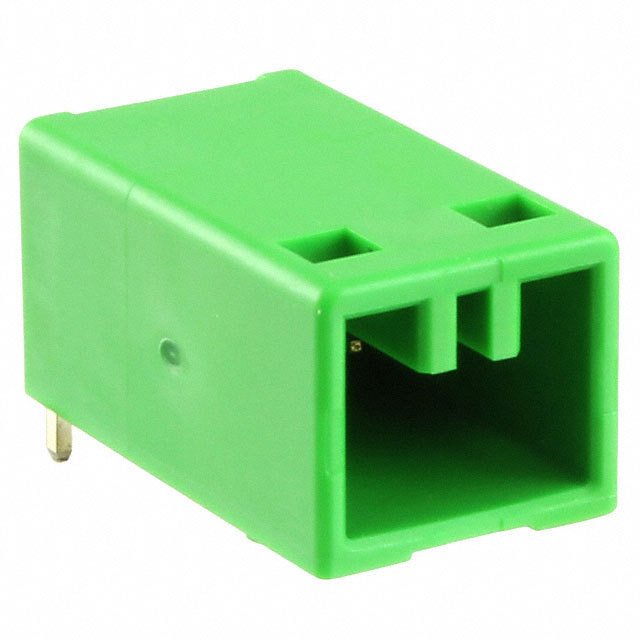

IL-AG9-3PL-S3L2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IL-AG9-3PL-S3L2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IL-AG9-3PL-S3L2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IL-AG9-3PL-S3L2 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN HEADER 3POS R/A 2.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2940 pcs | ||||
|---|---|---|---|---|---|
| $0.502 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IL-AG9-3PL-S3L2 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HEADER 3POS R/A 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61982 pcs | Data sheet | IL-Agx Spec SheetIL-AG9-3PL-S3L2 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | IL-AG9 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 670-2216 ILAG93PLS3L2 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Green |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm) |
| Current Rating | 3A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.323" (8.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
