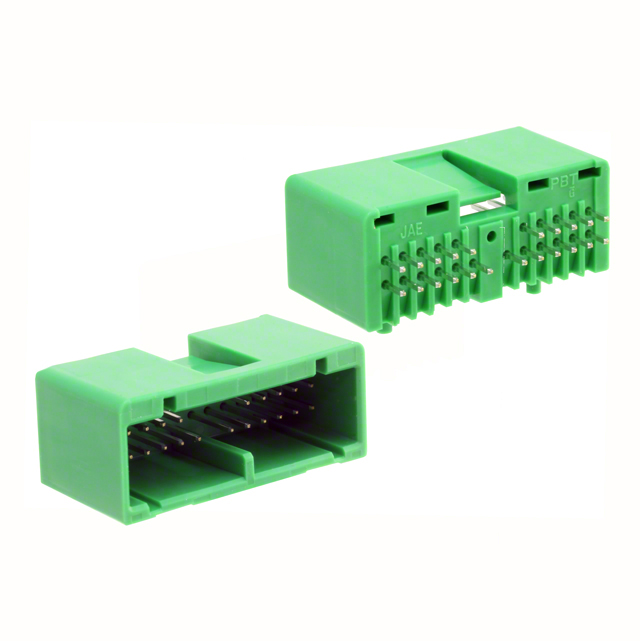

IL-AG5-22P-D3T2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IL-AG5-22P-D3T2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IL-AG5-22P-D3T2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IL-AG5-22P-D3T2 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PIN HEADER 2.5MM 22POS STR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.87 | $0.79 | $0.677 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.564 | $0.483 | $0.429 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IL-AG5-22P-D3T2 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PIN HEADER 2.5MM 22POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72825 pcs | Data sheet | Transportation GuideIL-AG5-22P-D3T2 DrawingIL-AG5 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | IL-AG5 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | 0.594" (15.09mm) |
| Other Names | 670-2882 IL-AG5-22P-D3T2-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 28.2mm | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.717" (18.20mm) | Insulation Color | Green |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 22 position 0.098" (2.50mm) |
| Current Rating | 3A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.331" (8.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
