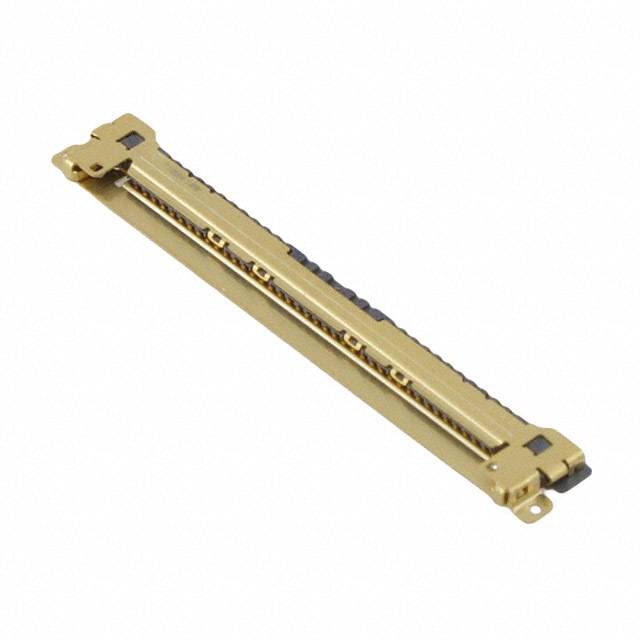

HD1S040HA1R6000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HD1S040HA1R6000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HD1S040HA1R6000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HD1S040HA1R6000 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | HD1 SERIES LVDS RECEPTACLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.513 | $0.45 | $0.423 | $0.405 | $0.388 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.353 | $0.317 | $0.282 | $0.256 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HD1S040HA1R6000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | HD1 SERIES LVDS RECEPTACLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91690 pcs | Data sheet | HD Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | HD | Row Spacing - Mating | - |
| Pitch - Mating | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | 670-2669-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic, Halogen Free |
| Insulation Height | 0.039" (1.00mm) | Insulation Color | - |
| Ingress Protection | - | Features | Shielded, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | 40 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold |
| Current Rating | - | Contact Type | Outer Shroud Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 1.25µin (0.032µm) |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
