FR02C023JA1-R5000

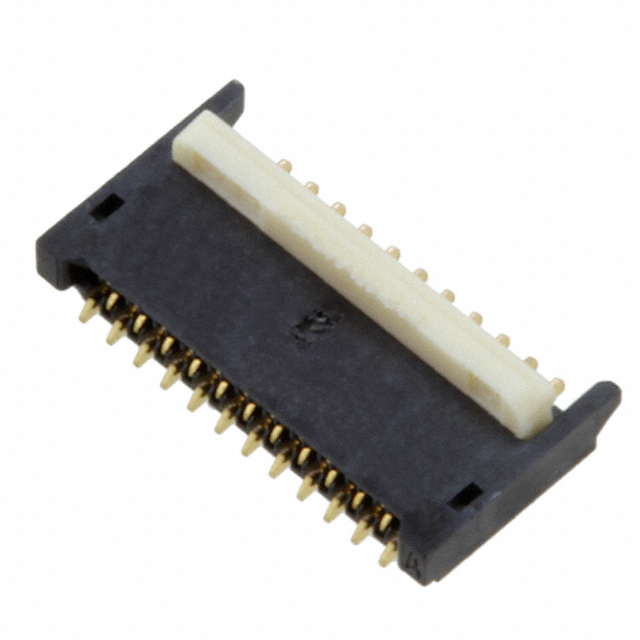

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FR02C023JA1-R5000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FR02C023JA1-R5000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FR02C023JA1-R5000 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC 23POS 0.20MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.512 | $0.451 | $0.425 | $0.407 | $0.39 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.354 | $0.319 | $0.283 | $0.257 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FR02C023JA1-R5000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC 23POS 0.20MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78440 pcs | Data sheet | FR02 SeriesFR02C0xxJA1 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FR02 |
| Pitch | 0.008" (0.20mm) | Packaging | Cut Tape (CT) |
| Other Names | 670-2740-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 23 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic | Housing Color | Black |
| Height Above Board | 0.032" (0.81mm) | Flat Flex Type | FPC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 23 Position FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle | Current Rating | 0.25A per Contact |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tabbed or Tapered | Actuator Material | Plastic |
| Actuator Color | Natural |
