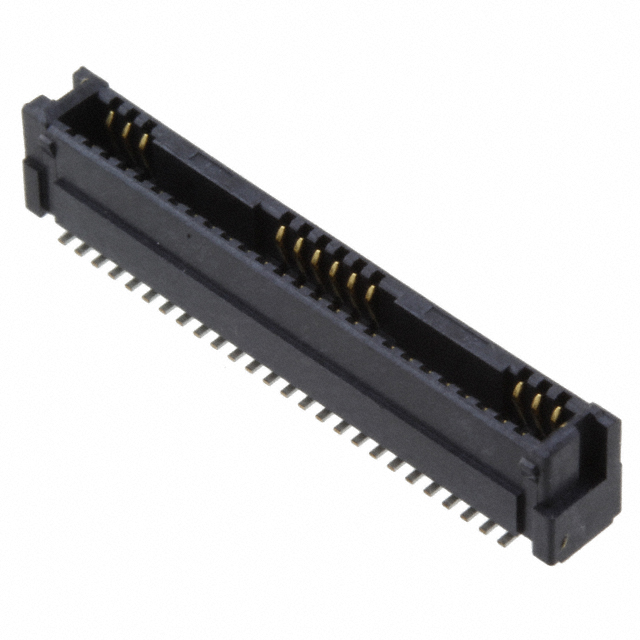

FK3S026WQ1R1000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FK3S026WQ1R1000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FK3S026WQ1R1000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FK3S026WQ1R1000 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN HEADER 26POS VERT 1MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FK3S026WQ1R1000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HEADER 26POS VERT 1MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5623 pcs | Data sheet | FK3S026WQ1 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | FK3 |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 670-2206-2 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.234" (5.95mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Surface Mount 26 position 0.039" (1.00mm) | Current Rating | - |
| Contact Type | Outer Shroud Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
