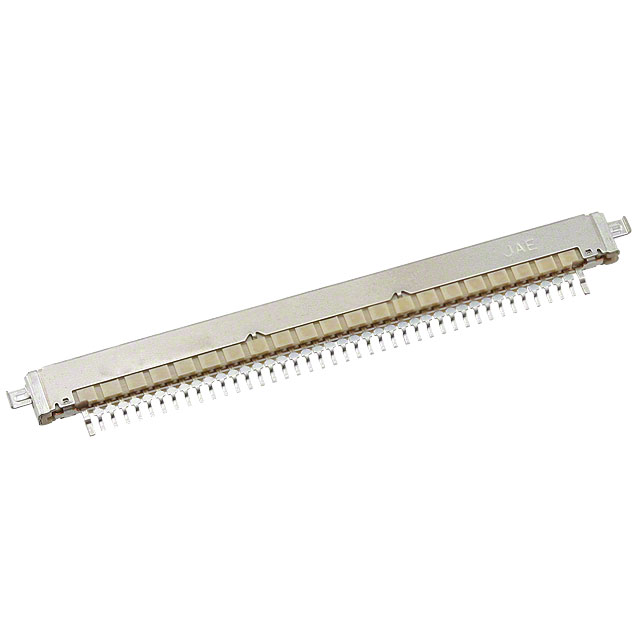

FI-NXB40SL-HF10-R3000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FI-NXB40SL-HF10-R3000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FI-NXB40SL-HF10-R3000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FI-NXB40SL-HF10-R3000 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT 40POS HS PCB BOTTOM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FI-NXB40SL-HF10-R3000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 40POS HS PCB BOTTOM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3975 pcs | Data sheet | FI-NXB40SL-HF10 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | FI-NX | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Tape & Reel (TR) |
| Other Names | 670-2460-2 FINXB40SLHF10R3000 |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Board Cutout, Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | - |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Shielded, Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 40 Position Receptacle Connector 0.031" (0.80mm) Board Cutout, Surface Mount, Right Angle Gold | Current Rating | 0.5A per Contact |
| Contact Type | Female Blade Socket | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
