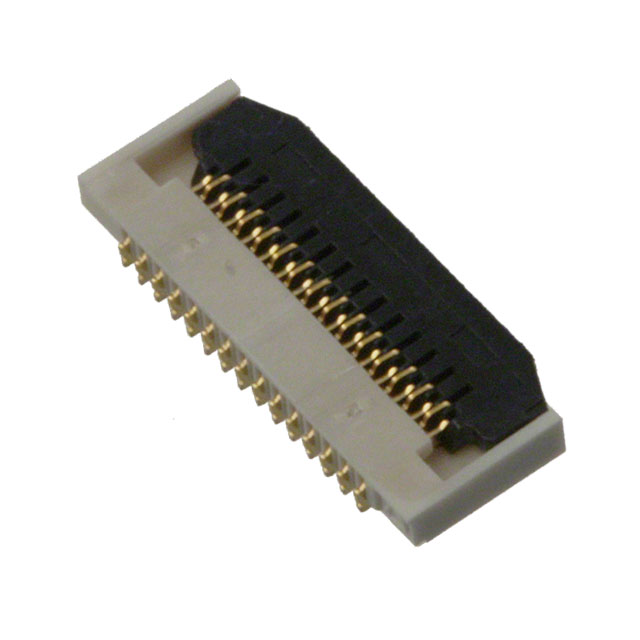

FF0829SA1-R300
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FF0829SA1-R300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FF0829SA1-R300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FF0829SA1-R300 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC BOTTOM 29POS 0.20MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FF0829SA1-R300 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 29POS 0.20MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4115 pcs | Data sheet | FF08 Series DatasheetFF08xxSA1-R3000 Pkg DrawingFF08xxSA1 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FF08 |
| Pitch | 0.008" (0.20mm) | Packaging | Cut Tape (CT) |
| Other Names | 670-2473-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 29 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Plastic |
| Housing Color | Beige | Height Above Board | 0.039" (1.00mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.15mm | Detailed Description | 29 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle |
| Current Rating | 0.3A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tabbed |
| Actuator Material | Plastic | Actuator Color | Black |
