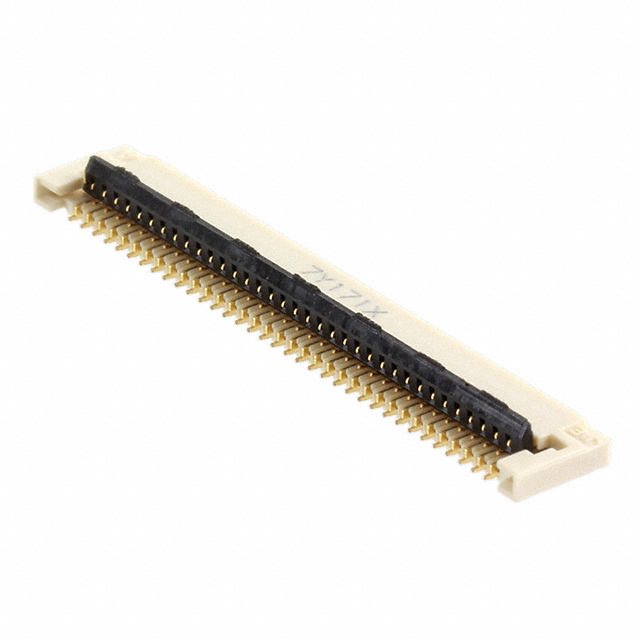

FF0270SS1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FF0270SS1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FF0270SS1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FF0270SS1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC BOTTOM 70POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FF0270SS1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 70POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5896 pcs | Data sheet | FF02 Series DatasheetFF02(60,70,90)SS1 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FF02 |
| Pitch | 0.012" (0.30mm) | Packaging | Tray |
| Other Names | 670-2103 | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 70 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | White | Height Above Board | 0.047" (1.20mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.12mm | Detailed Description | 70 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.35A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | Black |
