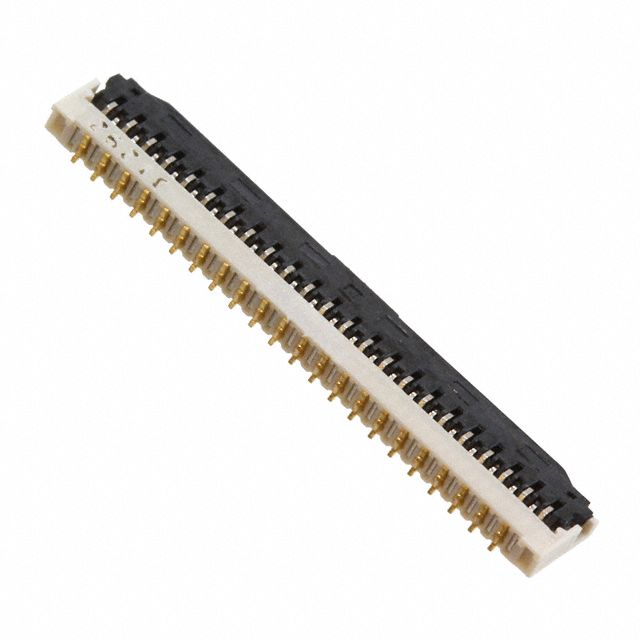

FB10S045JA2R6000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FB10S045JA2R6000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FB10S045JA2R6000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FB10S045JA2R6000 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC BOTTOM 45POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.522 | $0.473 | $0.444 | $0.425 | $0.405 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.367 | $0.338 | $0.29 | $0.27 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FB10S045JA2R6000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 45POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79581 pcs | Data sheet | FB10S0zzzJA2 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FB10 |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | 670-2666-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 45 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | - | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Plastic |
| Housing Color | White | Height Above Board | 0.035" (0.88mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.35A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tabbed or Tapered |
| Actuator Material | Plastic | Actuator Color | Black |
