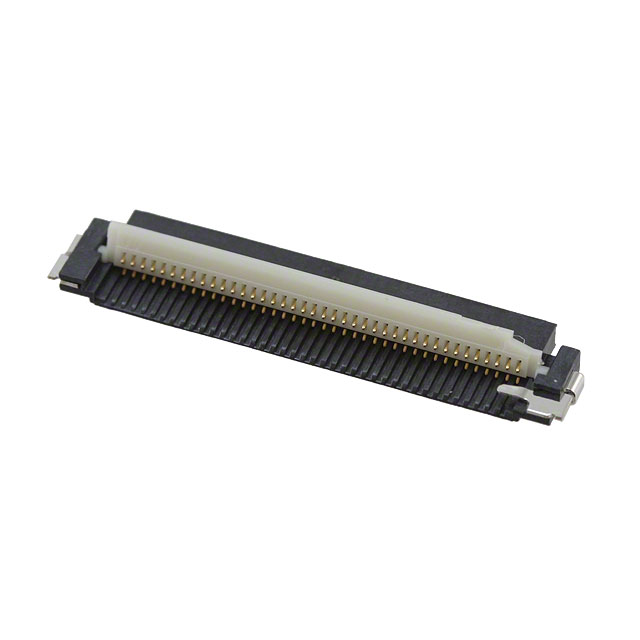

FA5S040HP1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FA5S040HP1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FA5S040HP1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FA5S040HP1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC BOTTOM 40POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.177 | $3.038 | $2.762 | $2.624 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.555 | $2.279 | $2.141 | $1.892 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FA5S040HP1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 40POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18947 pcs | Data sheet | FA5SzzzHP1 DrawingFA5 Series DatasheetBoard-to-Flex Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FA5 |
| Pitch | 0.020" (0.50mm) | Packaging | Strip |
| Other Names | 670-1706 FA5S040HP1-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 40 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Black |
| Height Above Board | 0.057" (1.45mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 40 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.8A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | White |
