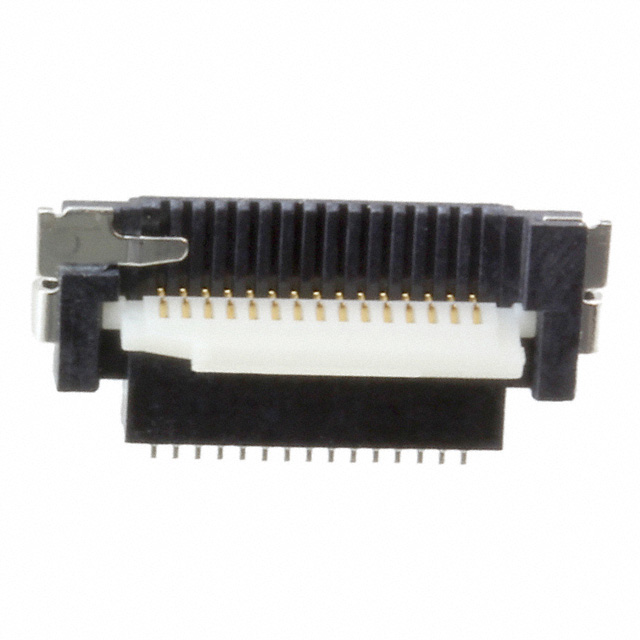

FA5S015HP1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FA5S015HP1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FA5S015HP1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FA5S015HP1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC BOTTOM 15POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 119 pcs | ||||
|---|---|---|---|---|---|
| $1.497 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FA5S015HP1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 15POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21337 pcs | Data sheet | FA5SzzzHP1 DrawingFA5 Series DatasheetBoard-to-Flex Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FA5 |
| Pitch | 0.020" (0.50mm) | Packaging | Tray |
| Other Names | 670-1823 FA5S015HP1-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 15 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Black |
| Height Above Board | 0.057" (1.45mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 15 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.8A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | White |
