ES9P004VFZR1600

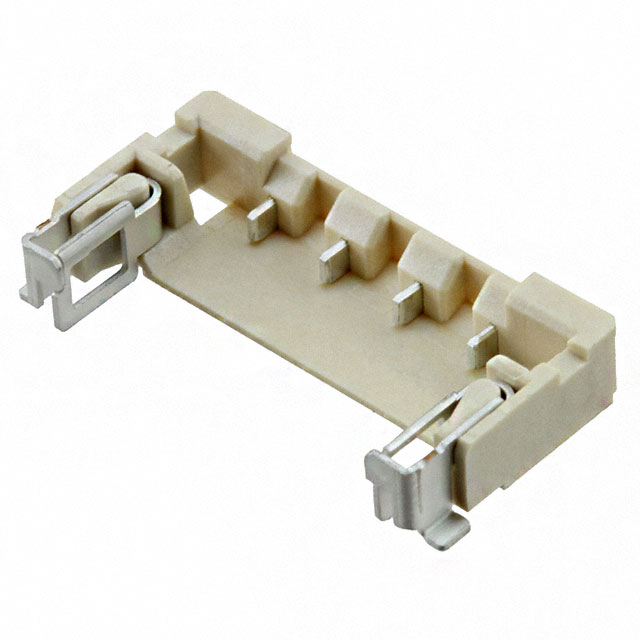

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ES9P004VFZR1600 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ES9P004VFZR1600 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ES9P004VFZR1600 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | ES9 4 PIN PLUG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1600 pcs | 3200 pcs | 4800 pcs | 8000 pcs | 16000 pcs |
|---|---|---|---|---|---|
| $0.182 | $0.175 | $0.169 | $0.161 | $0.157 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ES9P004VFZR1600 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | ES9 4 PIN PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 124661 pcs | Data sheet | ES9P00xVFZ DrawingES9 Series |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | ES9 |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 670-2742-2 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.118" (3.00mm) | Insulation Color | Ivory |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Spring Lock | Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm) |
| Current Rating | 3A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Plug | Applications | - |
