ES3S001JF3R3300

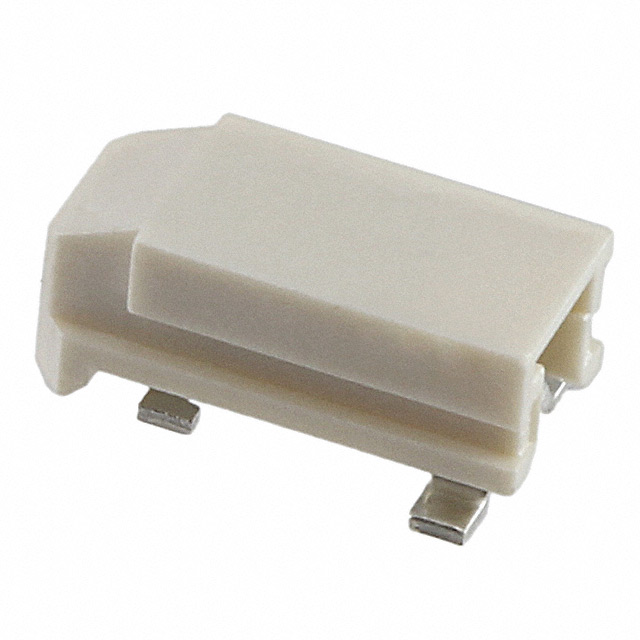

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ES3S001JF3R3300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ES3S001JF3R3300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ES3S001JF3R3300 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN SSL RECEPTACLE 1POS SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3300 pcs | 6600 pcs | 9900 pcs | 16500 pcs | 33000 pcs |
|---|---|---|---|---|---|
| $0.078 | $0.076 | $0.071 | $0.07 | $0.068 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ES3S001JF3R3300 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN SSL RECEPTACLE 1POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 339608 pcs | Data sheet | ES3 Series (JF3 Type) DatasheetES3S001JF3R3300 Pkg DrawingES3S001JF3 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 24-26 AWG |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | ES3 | Pitch | - |
| Packaging | Tape & Reel (TR) | Other Names | 670-2697-2 ES3S001JF3R3300-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 1 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 5 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | - |
| Features | - | Fastening Type | - |
| Detailed Description | SSL Connector 1 Position Receptacle, Poke-In Wire Board to Cable/Wire Solder | Current Rating | 2A |
| Contact Material | Copper Alloy | Contact Finish | Tin |
| Connector Type | Receptacle, Poke-In Wire |
