DX2R005HN2E700

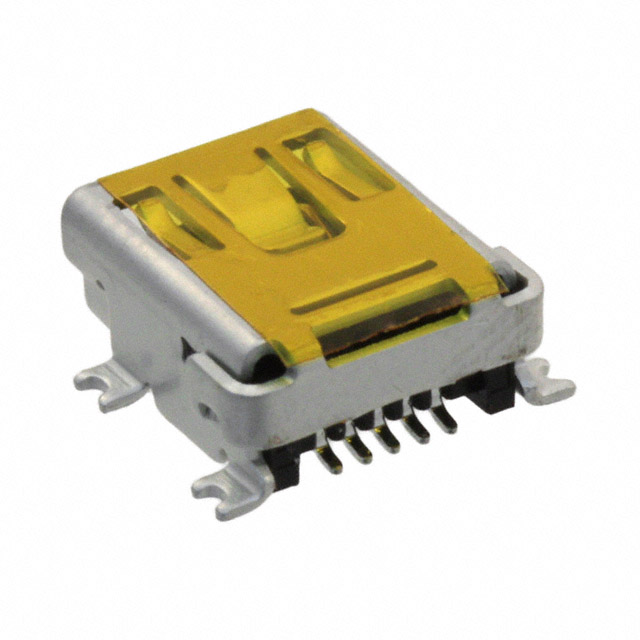

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DX2R005HN2E700 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DX2R005HN2E700 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DX2R005HN2E700 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN USB RCPT MINI B 5PS R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DX2R005HN2E700 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN USB RCPT MINI B 5PS R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4569 pcs | Data sheet | DX2R005HN2 DrawingDX2R005HN2E700 Pkg DrawingInput-Output Selection Guide |
| Category | Connectors, Interconnects | Voltage - Rated | 30V |
| Termination | Solder | Specifications | USB 2.0 |
| Shielding | Unshielded | Shell/Shielding Material | Copper Alloy |
| Series | DX2 | Packaging | Tape & Reel (TR) |
| Other Names | 670-1190-2 | Operating Temperature | -20°C ~ 60°C |
| Number of Ports | 1 | Number of Contacts | 5 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 5000 |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | Black | Ingress Protection | - |
| Gender | Receptacle | Features | Board Guide, Solder Retention |
| Detailed Description | USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle | Current Rating | 1A |
| Contact Finish | Gold | Connector Type | USB - mini B |
