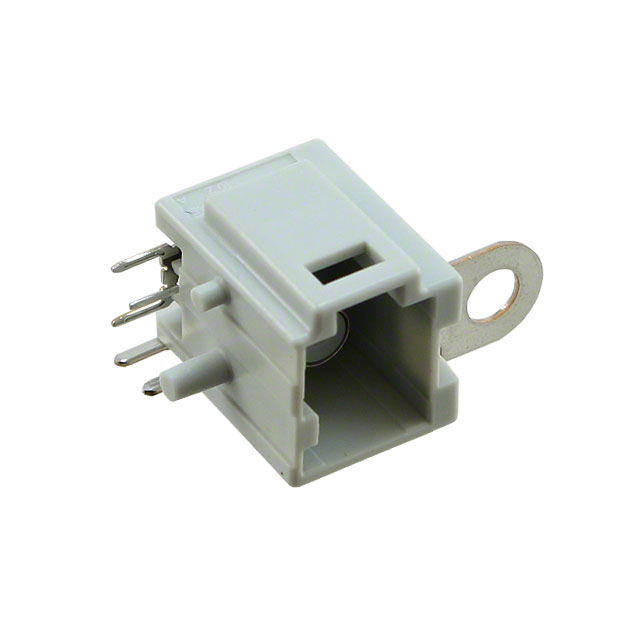

CE2S101C02
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CE2S101C02 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CE2S101C02 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CE2S101C02 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | COAX BOARD SIDE CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1188 pcs | ||||
|---|---|---|---|---|---|
| $0.676 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CE2S101C02 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | COAX BOARD SIDE CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58049 pcs | Data sheet | CE2S101C02 DrawingCE2 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CE2 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -30°C ~ 70°C | Number of Rows | - |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.451" (11.45mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Board Guide, Bracket | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 1 position | Current Rating | - |
| Contact Type | Female Socket, Coaxial | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold, Tin | Connector Type | Header |
| Applications | Automotive |
