TLP521-4GR

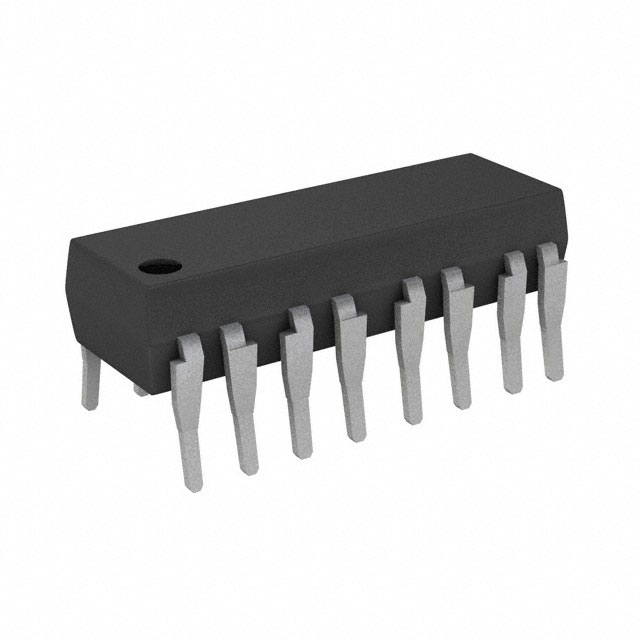

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP521-4GR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP521-4GR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP521-4GR |
|---|---|
| Manufacturer | Isocom Components |
| Description | OPTOISO 5.3KV 4CH TRANS 16DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 400 pcs |
|---|---|---|---|---|---|
| $0.617 | $0.503 | $0.387 | $0.348 | $0.309 | |
| 800 pcs | 1200 pcs | 2800 pcs | 5200 pcs | ||
| $0.232 | $0.217 | $0.206 | $0.201 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP521-4GR | Manufacturer | Isocom Components |
|---|---|---|---|
| Description | OPTOISO 5.3KV 4CH TRANS 16DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118753 pcs | Data sheet | TLP521,-2,-4 |
| Category | Isolators | Voltage - Output (Max) | 55V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.15V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 16-DIP | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tube |
| Package / Case | 16-DIP (0.400", 10.16mm) | Output Type | Transistor |
| Operating Temperature | -30°C ~ 100°C | Number of Channels | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP |
| Current Transfer Ratio (Min) | - | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | - | Current - DC Forward (If) (Max) | 50mA |
