ISP814X

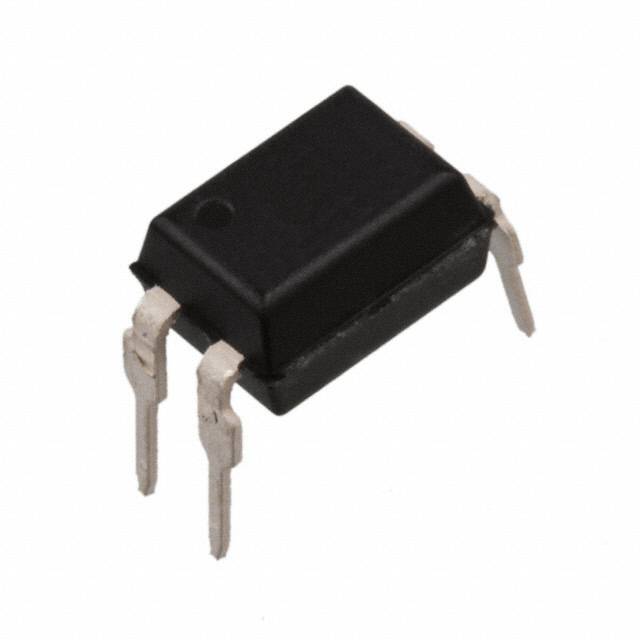

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISP814X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ISP814X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ISP814X |
|---|---|
| Manufacturer | Isocom Components |
| Description | OPTOISO 5.3KV TRANS 4DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.221 | $0.173 | $0.144 | $0.124 | ||
| 250 pcs | 500 pcs | 2000 pcs | 6000 pcs | ||
| $0.111 | $0.095 | $0.067 | $0.062 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ISP814X | Manufacturer | Isocom Components |
|---|---|---|---|
| Description | OPTOISO 5.3KV TRANS 4DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 340933 pcs | Data sheet | ISP814,824,844(X) |
| Category | Isolators | Voltage - Output (Max) | 35V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-DIP | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tube |
| Package / Case | 4-DIP (0.300", 7.62mm) | Output Type | Transistor |
| Other Names | ISP814 ISP814-ND |
Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | AC, DC |
| Detailed Description | Optoisolator Transistor Output 5300Vrms 1 Channel 4-DIP | Current Transfer Ratio (Min) | 20% @ 1mA |
| Current Transfer Ratio (Max) | 300% @ 1mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA |
