IS314W

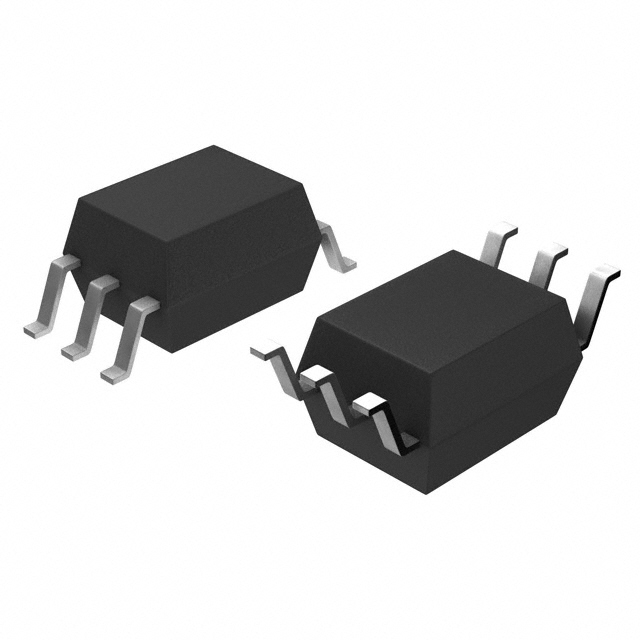

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IS314W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IS314W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IS314W |
|---|---|
| Manufacturer | Isocom Components |
| Description | OPTOISO 5KV 1CH GATE DRIVER 6SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.64 | $0.521 | $0.401 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.361 | $0.321 | $0.272 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IS314W | Manufacturer | Isocom Components |
|---|---|---|---|
| Description | OPTOISO 5KV 1CH GATE DRIVER 6SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70187 pcs | Data sheet | IS314W |
| Category | Isolators | Voltage - Supply | 10 V ~ 30 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.37V |
| Technology | Optical Coupling | Supplier Device Package | 6-SO Stretched |
| Series | - | Rise / Fall Time (Typ) | 35ns, 35ns |
| Pulse Width Distortion (Max) | 70ns | Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Packaging | Original-Reel® | Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Other Names | IS314WDKR | Operating Temperature | -40°C ~ 105°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 1A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO Stretched |
| Current - Peak Output | 1A | Current - Output High, Low | 800mA, 800mA |
| Current - DC Forward (If) (Max) | 25mA | Common Mode Transient Immunity (Min) | 20kV/µs |
| Approvals | - |
