Home > Products > Integrated Circuits (ICs) > PMIC - LED Drivers > ISL97631IHTZ-T7

ISL97631IHTZ-T7

ISL97631IHTZ-T7

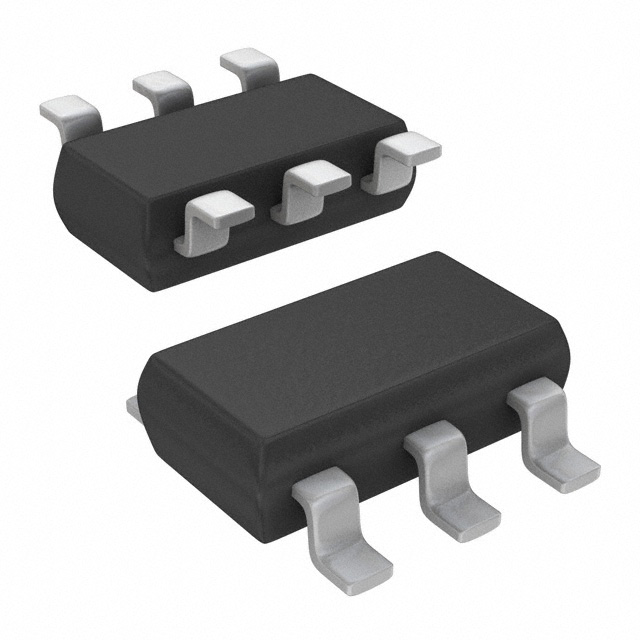

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL97631IHTZ-T7 with confidence from Components-World.HK, 1 Year Warranty

Dowload ISL97631IHTZ-T7 Details in PDF

Request a Quote

Part Number	ISL97631IHTZ-T7
Manufacturer	Intersil
Description	IC LED DRIVER RGLTR DIM TSOT23-6
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4799 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ISL97631IHTZ-T7	Manufacturer	Intersil
Description	IC LED DRIVER RGLTR DIM TSOT23-6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4799 pcs	Data sheet	ISL97631
Category	Integrated Circuits (ICs)	Voltage - Supply (Min)	2.7V
Voltage - Supply (Max)	5.5V	Voltage - Output	27V
Type	DC DC Regulator	Topology	Step-Up (Boost)
Supplier Device Package	TSOT-23-6	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOT-23-6 Thin, TSOT-23-6
Other Names	ISL97631IHTZ-T7-ND ISL97631IHTZ-T7TR ISL97631IHTZT7	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency	1.35MHz
Dimming	Analog, PWM	Detailed Description	LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 350mA (Switch) TSOT-23-6
Current - Output / Channel	350mA (Switch)	Base Part Number	ISL97631
Applications	Backlight
