Home > Products > Integrated Circuits (ICs) > PMIC - Battery Chargers > ISL9220BIRTZ-T

ISL9220BIRTZ-T

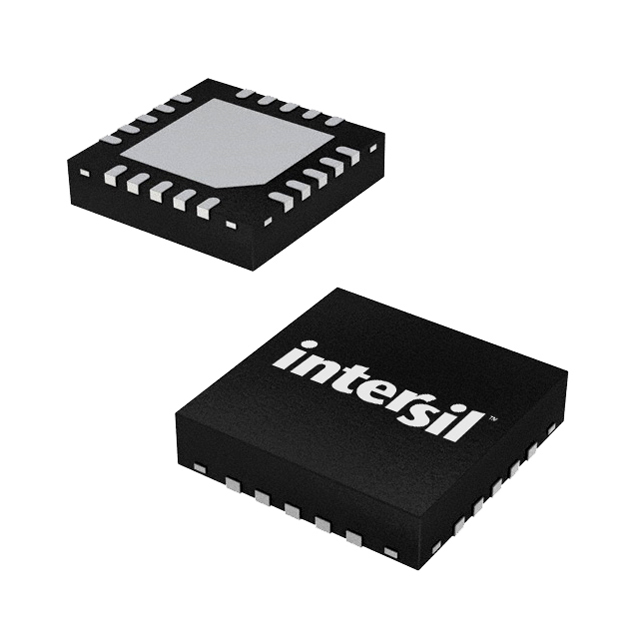

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL9220BIRTZ-T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL9220BIRTZ-T
Manufacturer	Intersil
Description	IC BATT CHRGR LIION 1CELL 20TQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4695 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ISL9220BIRTZ-T	Manufacturer	Intersil
Description	IC BATT CHRGR LIION 1CELL 20TQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4695 pcs	Data sheet	ISL9220B
Category	Integrated Circuits (ICs)	Voltage - Supply (Max)	14V
Supplier Device Package	20-TQFN (4x4)	Series	-
Programmable Features	Timer	Packaging	Tape & Reel (TR)
Package / Case	20-WFQFN Exposed Pad	Operating Temperature	-40°C ~ 85°C (TA)
Number of Cells	1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	-
Fault Protection	Over Temperature, Short Circuit	Detailed Description	Charger IC Lithium Ion/Polymer 20-TQFN (4x4)
Current - Charging	Constant - Programmable	Charge Current - Max	2A
Battery Pack Voltage	4.2V	Battery Chemistry	Lithium Ion/Polymer
Base Part Number	ISL9220
