Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL85033-12VEVAL3Z

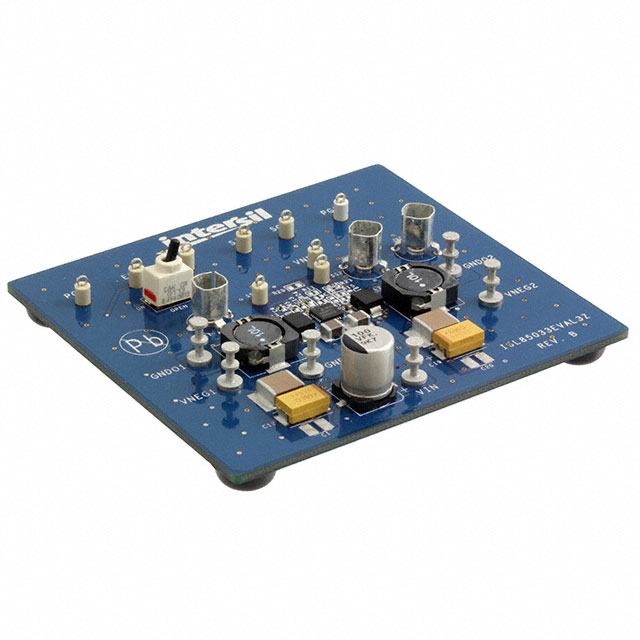

ISL85033-12VEVAL3Z

ISL85033-12VEVAL3Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL85033-12VEVAL3Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL85033-12VEVAL3Z
Manufacturer	Intersil
Description	BOARD EVAL FOR ISL85033
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 884 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$38.003

Product parameter
Data sheet

Product parameter

Part Number	ISL85033-12VEVAL3Z	Manufacturer	Intersil
Description	BOARD EVAL FOR ISL85033	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	884 pcs	Data sheet	ISL85033 ISL85033-12VEVAL3Z
Category	Development Boards, Kits, Programmers	Voltage - Output	-3.3 V ~ -15 V
Voltage - Input	4.5 V ~ 28 V	Utilized IC / Part	ISL85033
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	ISL8503312VEVAL3Z	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Main Purpose	DC/DC, Negative Inverter
Lead Free Status / RoHS Status	Not applicable / Not applicable	Frequency - Switching	300kHz ~ 2MHz
Detailed Description	ISL85033 - DC/DC, Negative Inverter 1, Non-Isolated Outputs Evaluation Board	Current - Output	5A
Board Type	Fully Populated
