Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL85014EVAL1Z

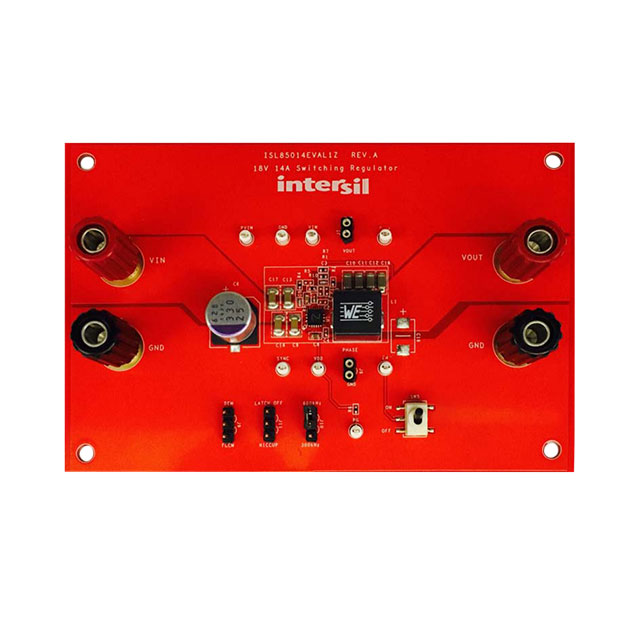

ISL85014EVAL1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL85014EVAL1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL85014EVAL1Z
Manufacturer	Intersil
Description	ISL85014 EVALUATON BRD 1 - 15 LD
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 887 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$33.97

Product parameter
Data sheet

Product parameter

Part Number	ISL85014EVAL1Z	Manufacturer	Intersil
Description	ISL85014 EVALUATON BRD 1 - 15 LD	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	887 pcs	Data sheet	ISL85014 ISL85014 ISL85014EVAL1Z User Guide Industrial Power Solutions ISL85014EVAL1Z User Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	1.8V
Voltage - Input	4.5 V ~ 18 V	Utilized IC / Part	ISL85014
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	600kHz	Detailed Description	ISL85014 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	14A	Board Type	Fully Populated
