ISL84684IRZ-T

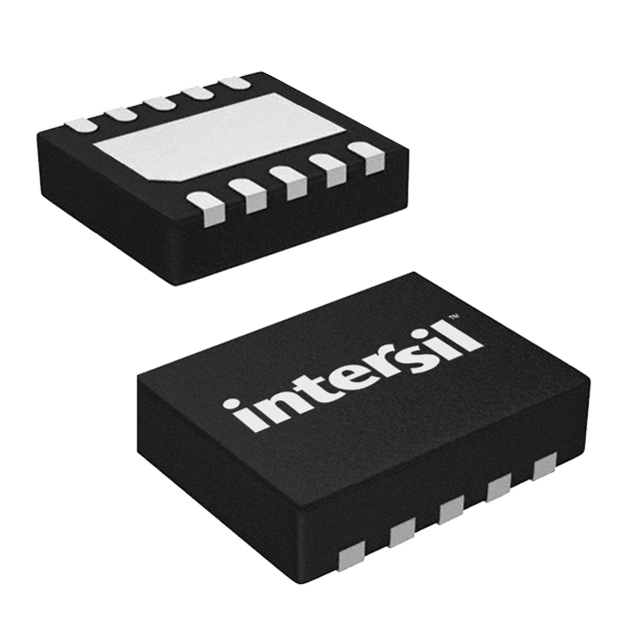

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL84684IRZ-T with confidence from Components-World.HK, 1 Year Warranty
Dowload ISL84684IRZ-T Details in PDFSee Product Specifications for product details.
Buy ISL84684IRZ-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ISL84684IRZ-T |
|---|---|
| Manufacturer | Intersil |
| Description | IC SWITCH DUAL SPDT 10TDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 6000 pcs | ||||
|---|---|---|---|---|---|
| $0.46 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ISL84684IRZ-T | Manufacturer | Intersil |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 10TDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73844 pcs | Data sheet | ISL84684 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.65 V ~ 3.6 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 50ns, 27ns |
| Switch Circuit | SPDT | Supplier Device Package | 10-TDFN (3x3) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad | Other Names | ISL84684IRZ-TTR |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 500 mOhm |
| Number of Circuits | 2 | Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 2 Circuit IC Switch 2:1 500 mOhm 10-TDFN (3x3) |
| Current - Leakage (IS(off)) (Max) | 4nA | Crosstalk | -85dB @ 100kHz |
| Charge Injection | 94pC | Channel-to-Channel Matching (ΔRon) | 55 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 65pF | Base Part Number | ISL84684 |
| -3db Bandwidth | - |
