Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL8130EVAL3Z

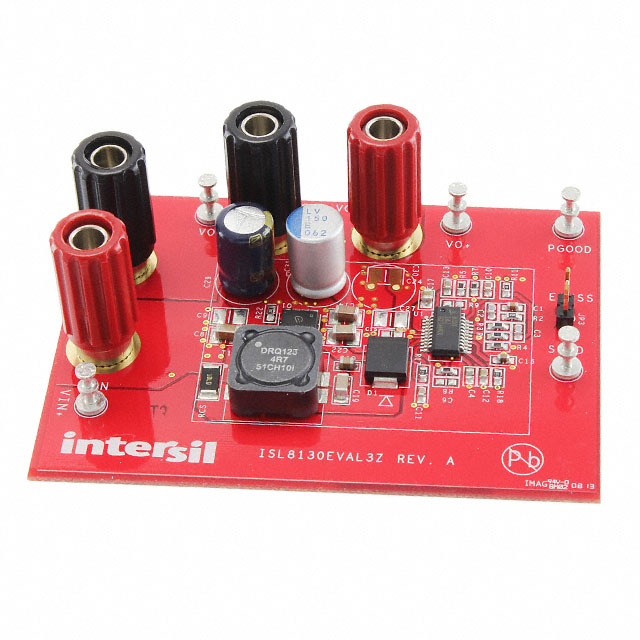

ISL8130EVAL3Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL8130EVAL3Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL8130EVAL3Z
Manufacturer	Intersil
Description	BOARD EVAL FOR ISL8130
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 1663 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$22.582

Product parameter
Data sheet

Product parameter

Part Number	ISL8130EVAL3Z	Manufacturer	Intersil
Description	BOARD EVAL FOR ISL8130	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	1663 pcs	Data sheet	ISL8130 ISL8130EVAL3Z
Category	Development Boards, Kits, Programmers	Voltage - Output	10V
Voltage - Input	5.6 V ~ 16 V	Utilized IC / Part	ISL8130
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost, Buck, Flyback	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Main Purpose	DC/DC, Step Up or Down	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	-	Detailed Description	ISL8130 - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	2A	Board Type	Fully Populated
