Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL8117DEMO2Z

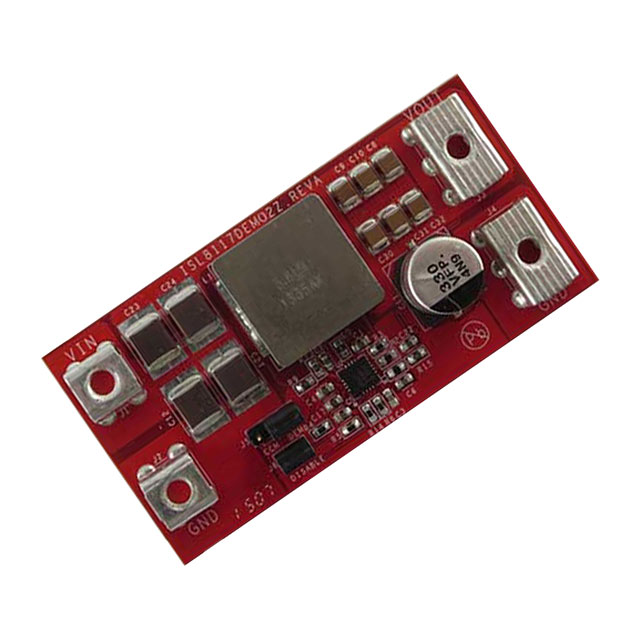

ISL8117DEMO2Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL8117DEMO2Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL8117DEMO2Z
Manufacturer	Intersil
Description	DEMO BOARD FOR ISL8117
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1215 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$27.331

Product parameter
Data sheet

Product parameter

Part Number	ISL8117DEMO2Z	Manufacturer	Intersil
Description	DEMO BOARD FOR ISL8117	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1215 pcs	Data sheet	ISL8117DEMO2Z User Guide ISL8117 Datasheet
Category	Development Boards, Kits, Programmers	Voltage - Output	12V
Voltage - Input	18 V ~ 60 V	Utilized IC / Part	ISL8117
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	200kHz	Detailed Description	ISL8117 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	20A	Board Type	Fully Populated
