Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Linear Voltage Regulators > ISL80510EVAL1Z

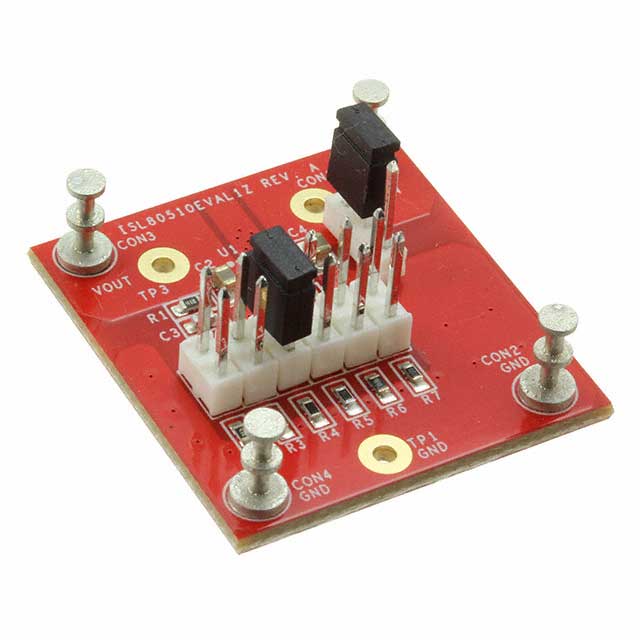

ISL80510EVAL1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL80510EVAL1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL80510EVAL1Z
Manufacturer	Intersil
Description	EVAL BOARD FOR ISL80510
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 3605 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$8.243

Product parameter
Data sheet

Product parameter

Part Number	ISL80510EVAL1Z	Manufacturer	Intersil
Description	EVAL BOARD FOR ISL80510	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	3605 pcs	Data sheet	ISL80510EVAL1Z User Guide ISL80510 Datasheet
Category	Development Boards, Kits, Programmers	Voltage - Output	0.8 V ~ 5.5 V
Voltage - Input	2.2 V ~ 6 V	Utilized IC / Part	ISL80510
Supplied Contents	Board(s)	Series	-
Regulator Type	Positive Adjustable	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Not applicable / Not applicable
Detailed Description	ISL80510 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board	Current - Output	1A
Channels per IC	1 - Single	Board Type	Fully Populated
