Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL8036ACRSHEVAL1Z

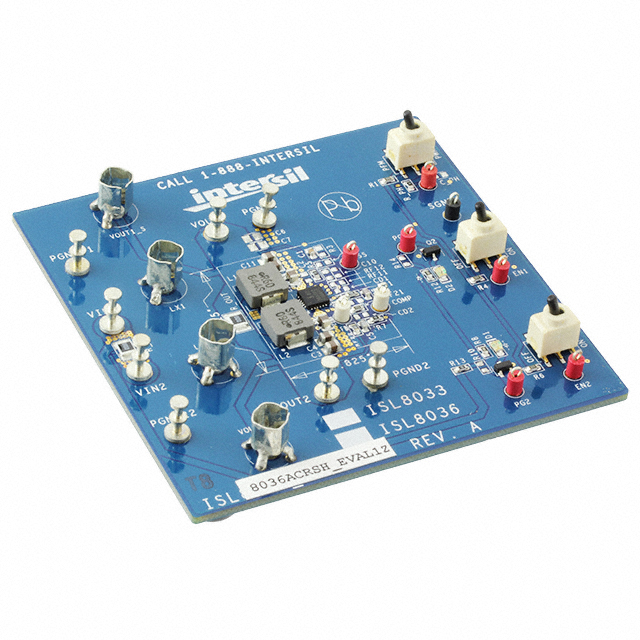

ISL8036ACRSHEVAL1Z

ISL8036ACRSHEVAL1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL8036ACRSHEVAL1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL8036ACRSHEVAL1Z
Manufacturer	Intersil
Description	BOARD EVAL FOR ISL8036A
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 835 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$41.242

Product parameter
Data sheet

Product parameter

Part Number	ISL8036ACRSHEVAL1Z	Manufacturer	Intersil
Description	BOARD EVAL FOR ISL8036A	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	835 pcs	Data sheet	ISL8036/A ISL8036ACRSHEVAL1Z
Category	Development Boards, Kits, Programmers	Voltage - Output	1.8V, 1.8V
Voltage - Input	2.85 V ~ 6 V	Utilized IC / Part	ISL8036A
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	2, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	-	Detailed Description	ISL8036A - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board
Current - Output	6A	Board Type	Fully Populated
