Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL80020DEMO1Z

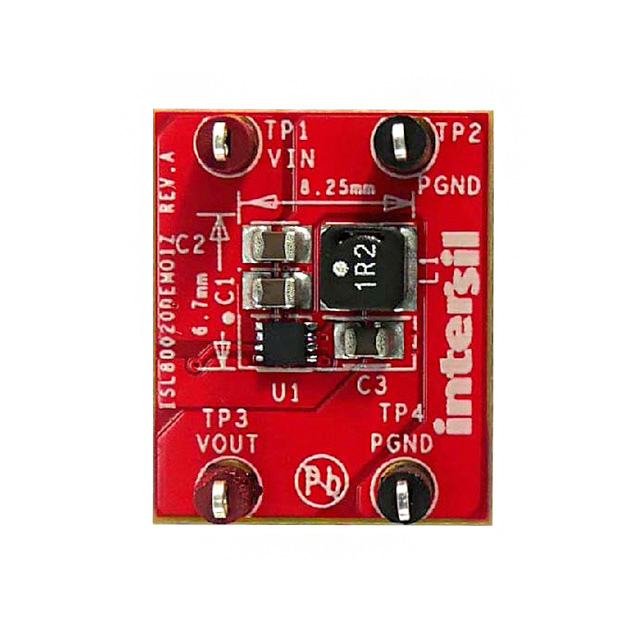

ISL80020DEMO1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL80020DEMO1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL80020DEMO1Z
Manufacturer	Intersil
Description	EVAL BOARD FOR ISL80020
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3876 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$7.708

Product parameter
Data sheet

Product parameter

Part Number	ISL80020DEMO1Z	Manufacturer	Intersil
Description	EVAL BOARD FOR ISL80020	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3876 pcs	Data sheet	ISL80zzzDEMO1Z User Guide ISL80020(A), ISL80015(A)
Category	Development Boards, Kits, Programmers	Voltage - Output	1.8V
Voltage - Input	2.7 V ~ 5.5 V	Utilized IC / Part	ISL80020
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	1MHz	Detailed Description	ISL80020 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	2A	Board Type	Fully Populated
