Home > Products > Integrated Circuits (ICs) > PMIC - Voltage Regulators - DC DC Switching Contro > ISL78220ANEZ-T

ISL78220ANEZ-T

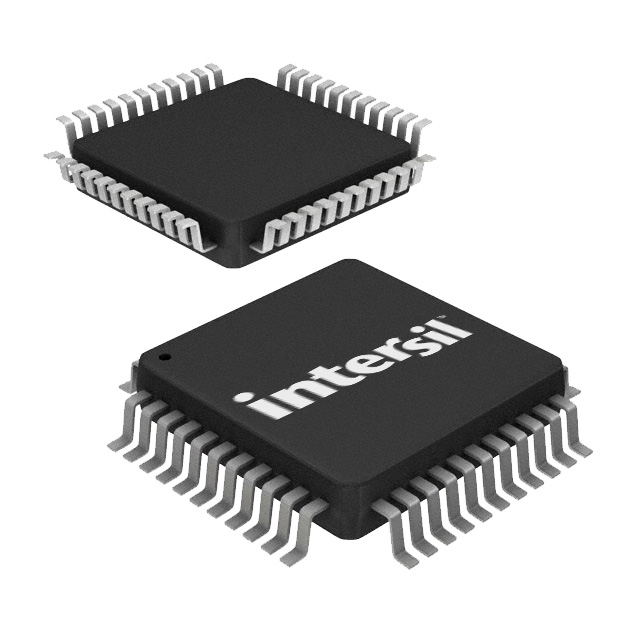

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL78220ANEZ-T with confidence from Components-World.HK, 1 Year Warranty

Dowload ISL78220ANEZ-T Details in PDF

Request a Quote

Part Number	ISL78220ANEZ-T
Manufacturer	Intersil
Description	IC REG CTRLR BOOST 44TQFP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 24451 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$1.282

Product parameter
Data sheet

Product parameter

Part Number	ISL78220ANEZ-T	Manufacturer	Intersil
Description	IC REG CTRLR BOOST 44TQFP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24451 pcs	Data sheet	ISL78220
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	4.75 V ~ 5.25 V
Topology	Boost	Synchronous Rectifier	-
Supplier Device Package	44-MQFP (10x10)	Series	Automotive, AEC-Q100
Serial Interfaces	-	Packaging	Tape & Reel (TR)
Package / Case	44-TQFP Exposed Pad	Output Type	PWM Signal
Output Phases	6	Output Configuration	Positive
Operating Temperature	-40°C ~ 125°C (TJ)	Number of Outputs	6
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Function	Step-Up
Frequency - Switching	75kHz ~ 1MHz	Duty Cycle (Max)	91.7%
Detailed Description	Boost Regulator Positive Output Step-Up DC-DC Controller IC 44-MQFP (10x10)	Control Features	Enable, Frequency Control, Power Good, Soft Start
Clock Sync	Yes	Base Part Number	ISL78220
