Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL68201-99140DEMO1Z

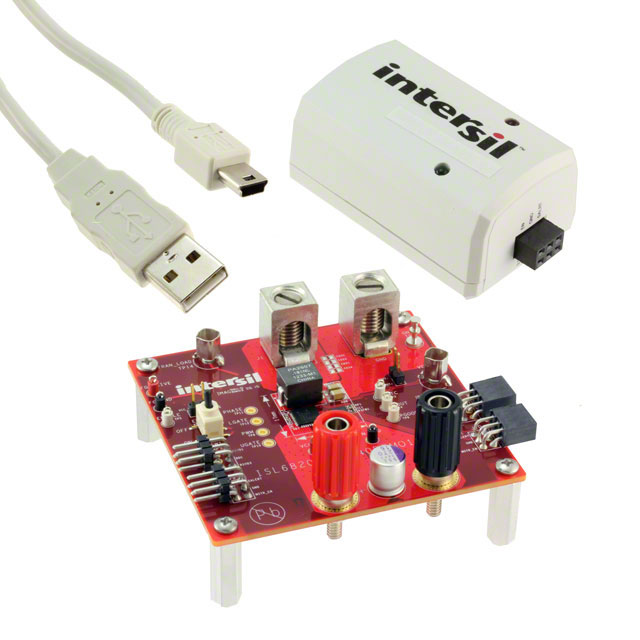

ISL68201-99140DEMO1Z

ISL68201-99140DEMO1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL68201-99140DEMO1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL68201-99140DEMO1Z
Manufacturer	Intersil
Description	DEMO BOARD ISL68201-99140
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 716 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$53.299

Product parameter
Data sheet

Product parameter

Part Number	ISL68201-99140DEMO1Z	Manufacturer	Intersil
Description	DEMO BOARD ISL68201-99140	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	716 pcs	Data sheet	USB to PMBus Adapter User Guide PowerNavigator User Guide ISL68201-99140DEMO1Z User Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	1V
Voltage - Input	4.75 V ~ 14.5 V	Utilized IC / Part	ISL68201
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	19 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	400kHz	Detailed Description	ISL68201 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	35A	Board Type	Fully Populated
