Home > Products > Integrated Circuits (ICs) > PMIC - Gate Drivers > ISL6613ECB

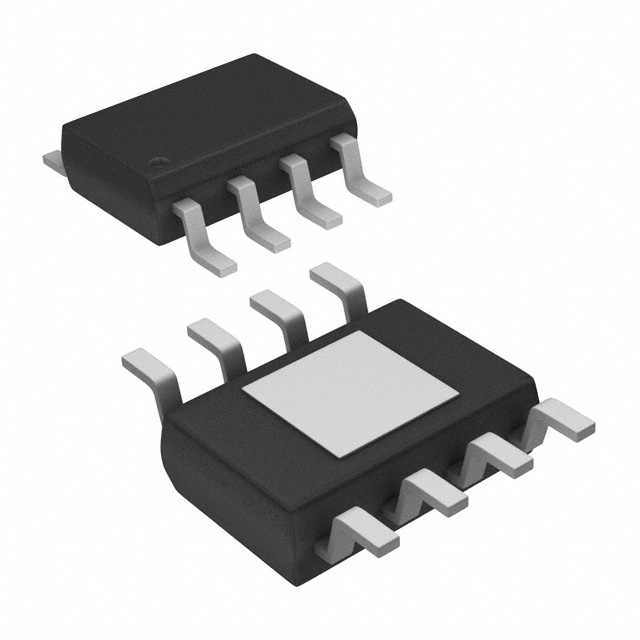

ISL6613ECB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL6613ECB with confidence from Components-World.HK, 1 Year Warranty

Dowload ISL6613ECB Details in PDF

Request a Quote

Part Number	ISL6613ECB
Manufacturer	Intersil
Description	IC MOSFET DRVR SYNC BUCK 8EPSOIC
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 5628 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ISL6613ECB	Manufacturer	Intersil
Description	IC MOSFET DRVR SYNC BUCK 8EPSOIC	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5628 pcs	Data sheet	ISL6612, ISL6613
Category	Integrated Circuits (ICs)	Voltage - Supply	10.8 V ~ 13.2 V
Supplier Device Package	8-SOIC-EP	Series	-
Rise / Fall Time (Typ)	26ns, 18ns	Packaging	Tube
Package / Case	8-SOIC (0.154", 3.90mm Width) Exposed Pad	Operating Temperature	0°C ~ 125°C (TJ)
Number of Drivers	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Logic Voltage - VIL, VIH	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	36V	Gate Type	N-Channel MOSFET
Driven Configuration	Half-Bridge	Detailed Description	Half-Bridge Gate Driver IC Non-Inverting 8-SOIC-EP
Current - Peak Output (Source, Sink)	1.25A, 2A	Channel Type	Synchronous
Base Part Number	ISL6613
