Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > ISL55210-ABEVAL1Z

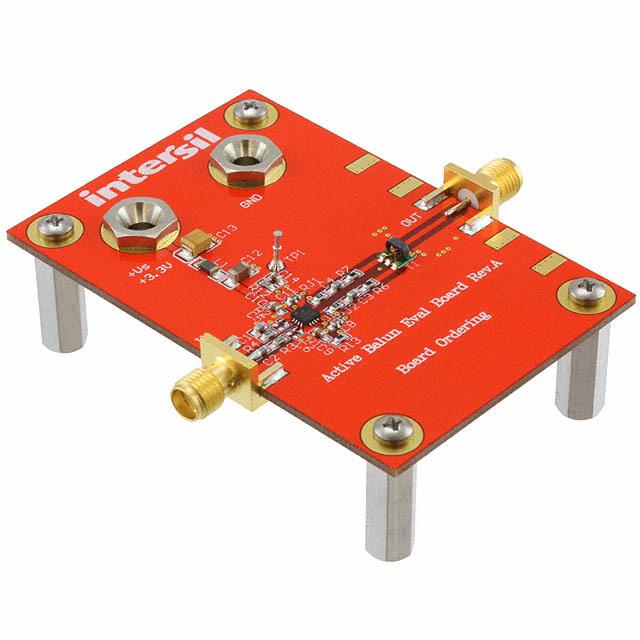

ISL55210-ABEVAL1Z

ISL55210-ABEVAL1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL55210-ABEVAL1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL55210-ABEVAL1Z
Manufacturer	Intersil
Description	BOARD EVAL ACTIVE BALUN ISL55210
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 1894 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$17.446

Product parameter
Data sheet

Product parameter

Part Number	ISL55210-ABEVAL1Z	Manufacturer	Intersil
Description	BOARD EVAL ACTIVE BALUN ISL55210	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	1894 pcs	Data sheet	ISL55210-ABEVAL1Z Designer's Guide ISL55210
Category	Development Boards, Kits, Programmers	Utilized IC / Part	ISL55210
Type	Interface	Supplied Contents	Board(s)
Series	-	Secondary Attributes	SMA Connectors
Primary Attributes	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Not applicable / Not applicable
Function	Balun	Embedded	No
Detailed Description	ISL55210 Balun Interface Evaluation Board
