ISL54065IRUZ-T

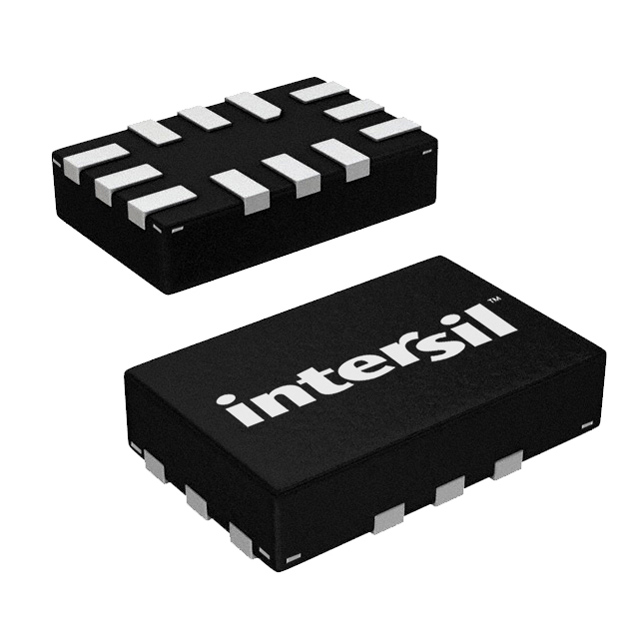

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL54065IRUZ-T with confidence from Components-World.HK, 1 Year Warranty
Dowload ISL54065IRUZ-T Details in PDFSee Product Specifications for product details.
Buy ISL54065IRUZ-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ISL54065IRUZ-T |
|---|---|
| Manufacturer | Intersil |
| Description | IC SWITCH DUAL SPDT 12UTQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | |||
|---|---|---|---|---|---|
| $0.323 | $0.311 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ISL54065IRUZ-T | Manufacturer | Intersil |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 12UTQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76318 pcs | Data sheet | ISL54065 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.8 V ~ 6.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 35ns, 16ns |
| Switch Circuit | SPDT | Supplier Device Package | 12-uTQFN (2.2x1.4) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFQFN | Other Names | ISL54065IRUZ-T-ND ISL54065IRUZ-TTR |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 520 mOhm (Typ) |
| Number of Circuits | 2 | Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 2 Circuit IC Switch 2:1 520 mOhm (Typ) 12-uTQFN (2.2x1.4) |
| Current - Leakage (IS(off)) (Max) | 8.13nA | Crosstalk | -75dB @ 1MHz |
| Charge Injection | 170pC | Channel-to-Channel Matching (ΔRon) | 10 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 36pF | Base Part Number | ISL54065 |
| -3db Bandwidth | 60MHz |
