Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Op Amps > ISL28535EV2Z

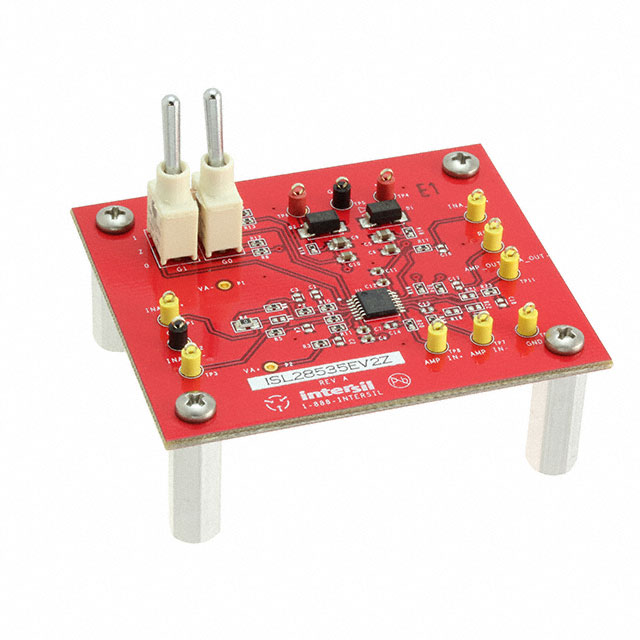

ISL28535EV2Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL28535EV2Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL28535EV2Z
Manufacturer	Intersil
Description	BOARD EVAL ISL28535EV2Z 14TSSOP
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 1564 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$22.923

Product parameter
Data sheet

Product parameter

Part Number	ISL28535EV2Z	Manufacturer	Intersil
Description	BOARD EVAL ISL28535EV2Z 14TSSOP	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	1564 pcs	Data sheet	ISL28533-35, ISL28633-35 Datasheet ISL2853x,63xEV2Z User Guide
Category	Development Boards, Kits, Programmers	Voltage - Supply, Single/Dual (±)	2.5 V ~ 5.5 V, ±1.25 V ~ 2.75 V
Utilized IC / Part	ISL28535	Supplied Contents	Board(s)
Slew Rate	0.8 V/µs	Series	-
Output Type	Single-Ended	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Not applicable / Not applicable	Detailed Description	ISL28535 1 - Single Channels per IC Programmable Gain Amplifier Evaluation Board
Current - Supply (Main IC)	2.9mA	Current - Output / Channel	45mA
Channels per IC	1 - Single	Board Type	Fully Populated
Amplifier Type	Programmable Gain
