Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Op Amps > ISL28005FH-100EVAL1Z

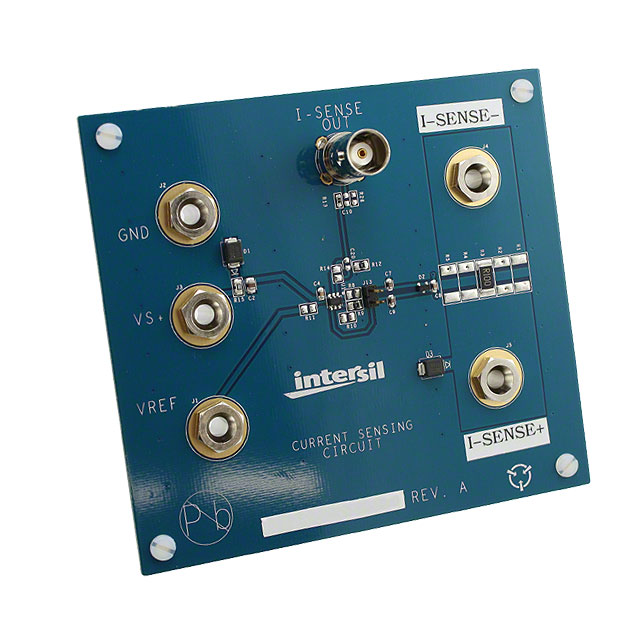

ISL28005FH-100EVAL1Z

ISL28005FH-100EVAL1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL28005FH-100EVAL1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL28005FH-100EVAL1Z
Manufacturer	Intersil
Description	EVAL BOARD FOR ISL28005
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 2043 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$18.63

Product parameter
Data sheet

Product parameter

Part Number	ISL28005FH-100EVAL1Z	Manufacturer	Intersil
Description	EVAL BOARD FOR ISL28005	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	2043 pcs	Data sheet	ISL28005 ISL28005 Eval Board Guide
Category	Development Boards, Kits, Programmers	Voltage - Supply, Single/Dual (±)	-
Utilized IC / Part	ISL28005	Supplied Contents	Board(s)
Slew Rate	0.76 V/µs	Series	-
Output Type	-	Other Names	ISL28005FH100EVAL1Z
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Not applicable / Not applicable	Detailed Description	ISL28005 1 - Single Channels per IC Current Sense Amplifier Evaluation Board
Current - Supply (Main IC)	50µA	Channels per IC	1 - Single
Board Type	Fully Populated	Amplifier Type	Current Sense
