Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > HIP2103_4MBEVAL1Z

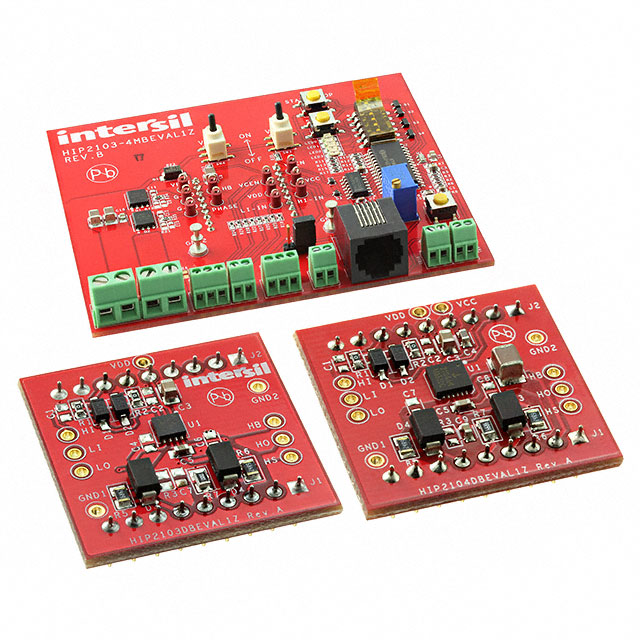

HIP2103_4MBEVAL1Z

HIP2103_4MBEVAL1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HIP2103_4MBEVAL1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HIP2103_4MBEVAL1Z
Manufacturer	Intersil
Description	BOARD EVAL HIP2103_4
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 1249 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$25.783

Product parameter
Data sheet

Product parameter

Part Number	HIP2103_4MBEVAL1Z	Manufacturer	Intersil
Description	BOARD EVAL HIP2103_4	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	1249 pcs	Data sheet	HIP2103,HIP2104 HIP2103,HIP2104 User Guide
Category	Development Boards, Kits, Programmers	Utilized IC / Part	HIP2103, HIP2104
Type	Power Management	Supplied Contents	Board(s)
Series	-	Secondary Attributes	On-Board LEDs
Primary Attributes	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Not applicable / Not applicable
Function	H-Bridge Driver (External FET)	Embedded	Yes, MCU, 8-Bit
Detailed Description	HIP2103, HIP2104 H-Bridge Driver (External FET) Power Management Evaluation Board
