HI3-DAC80V-5

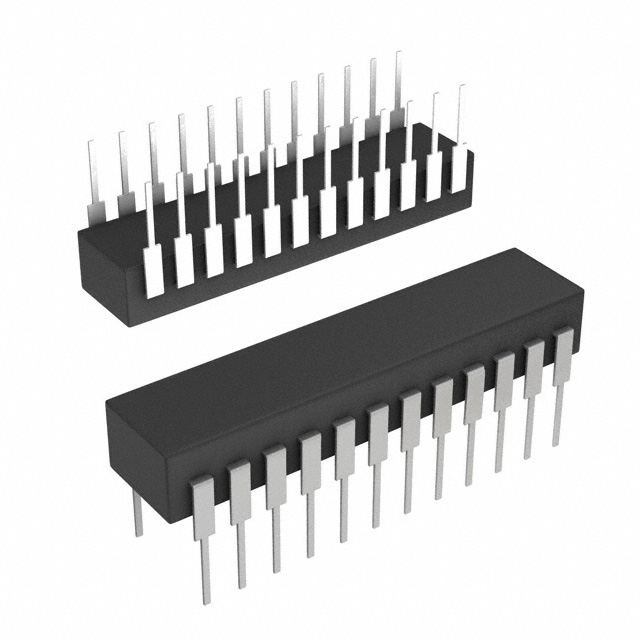

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HI3-DAC80V-5 with confidence from Components-World.HK, 1 Year Warranty
Dowload HI3-DAC80V-5 Details in PDFSee Product Specifications for product details.
Buy HI3-DAC80V-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HI3-DAC80V-5 |
|---|---|
| Manufacturer | Intersil |
| Description | CONV D/A 12BIT OUTPUT AMP 24DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HI3-DAC80V-5 | Manufacturer | Intersil |
|---|---|---|---|
| Description | CONV D/A 12BIT OUTPUT AMP 24DIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5863 pcs | Data sheet | HI-DAC80V |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Digital | - |
| Voltage - Supply, Analog | ±11.4 V ~ 16.5 V | Supplier Device Package | 24-PDIP |
| Settling Time | 3µs (Typ) | Series | - |
| Reference Type | External, Internal | Packaging | Tube |
| Package / Case | 24-DIP (0.600", 15.24mm) | Output Type | Voltage - Buffered |
| Operating Temperature | 0°C ~ 75°C | Number of D/A Converters | 1 |
| Number of Bits | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| INL/DNL (LSB) | ±0.25, ±0.5 | Differential Output | No |
| Detailed Description | 12 Bit Digital to Analog Converter 1 24-PDIP | Data Interface | Parallel |
| Base Part Number | HI-DAC80V | Architecture | R-2R |
